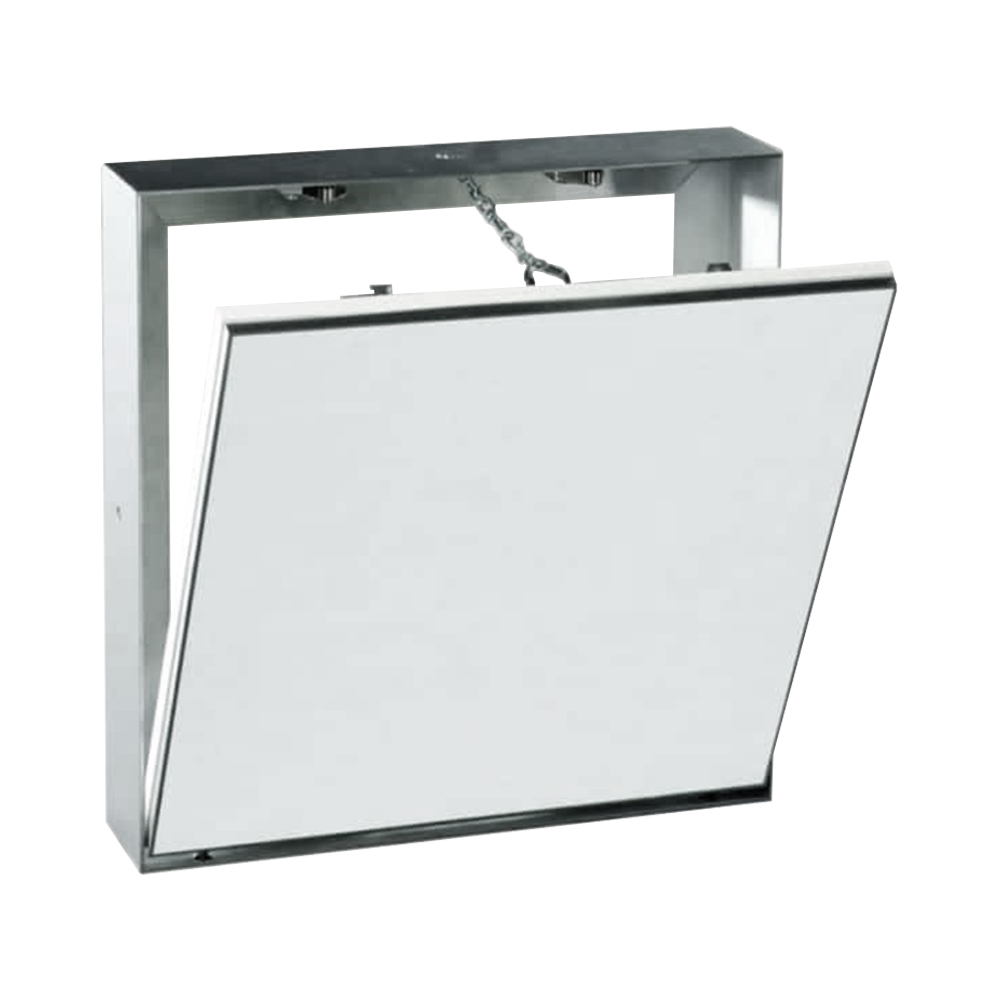

The material composition of this access panel is of a welded aluminum frame and comes with or without a 1/2" (12.7 mm) or 5/8" (15.9 mm) drywall inlay and two locks (comes standard with inlay and touch latches).

The access panels have a safety mechanism to prevent unintentional opening for sizes 12" x 12" (305 mm x 305 mm) and above. An exterior and an inner frame assembly are high-quality aluminum bonded using a specific welding method for sizes 12" x 12" (305 mm x 305 mm) and up. If the hatch gets removed, you must reinstall this safety mechanism.

There is a 1/6 inch (1.59 mm) reveal between the outside frame and the door hatch. When there's an application of pressure to the spring-loaded latch side, the hidden snap latches open the access panel. This access panel has an intended design for use in concrete wall systems. For ease of installation, this panel comes with predrilled holes.

Here are other features of the product:

MATERIAL: 16 gauge galvanized steel.
FLANGE: ¾" flange.
LOCK/LATCH: 2 x Screwdriver Operated Latch with Stainless Steel Cam.
HINGE: Concealed continuous piano hinge.
FINISH: Galvanized Steel.

Access doors and panels have an excellent array of high-quality products from trusted manufacturers. You can certainly select the correct type of product for your next endeavors by calling 1-800-609-2917. Their excellent customer service representatives can help you with your purchase or additional inquiries.
