FB 5060 DW

FB 5060 DW

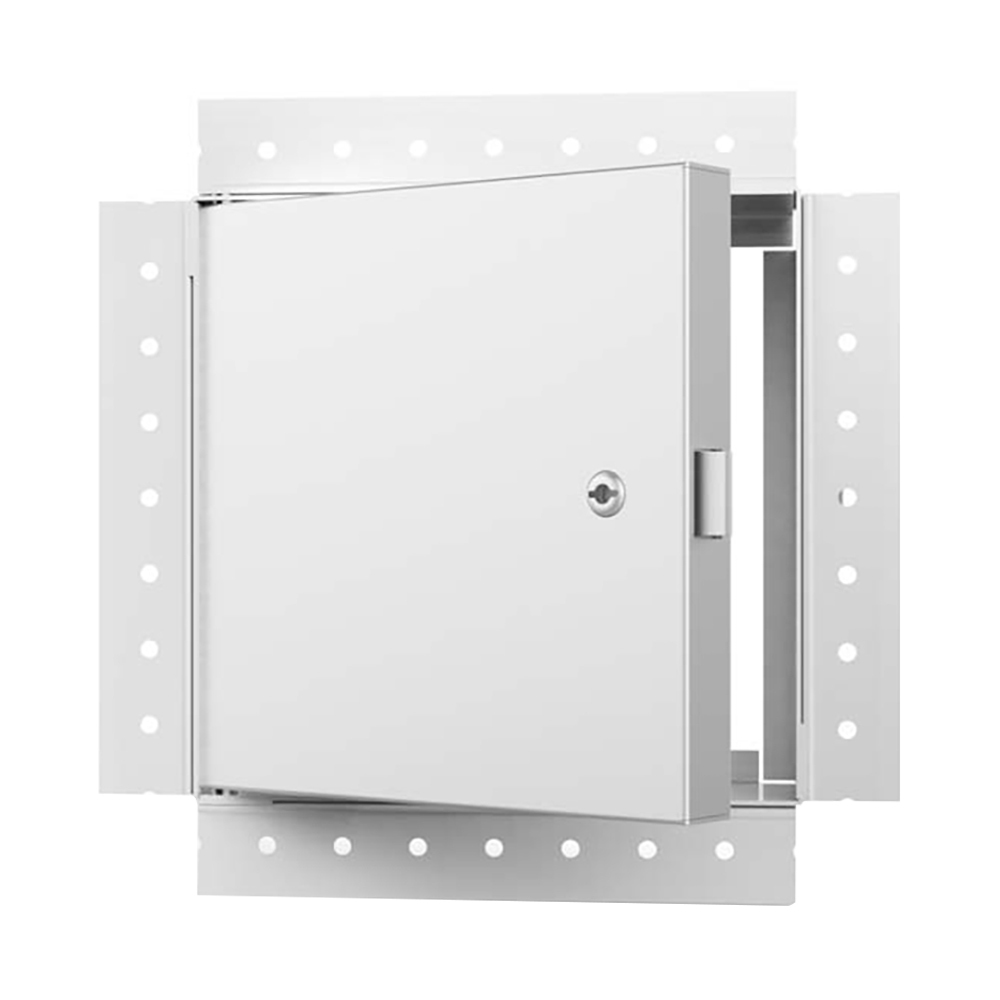

Access Doors and Panels always make sure to provide the quality products you need for any construction projects. This is why we are proud to introduce to you our industry-leading product, the FB 5060 DW Fire Rated Un-Insulated Access Door with Flange for Drywall from Acudor.

The FB-5060-DW drywall, the fire-rated access door is an enhanced FB-5060 that includes a galvanized steel drywall taping bead flange to facilitate installation in drywall. The Acudor FB-5060 is approved by Underwriters Laboratories (UL) for 1 1/2 hours "B" label in walls and ULC for 2 hours "B" label in walls. Designed to maintain continuity in a 2-hour fire barrier wall, the FB-5060 should be used whenever it is necessary to provide access in fire-rated walls when temperature rise is not a factor.

Product Specifications;

  • Finish: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
  • Flange: Drywall taping bead flange
  • Hinge: Concealed pin hinge
  • Lock/Latch: 1 x Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
  • Material: 16 gauge steel

We offer all standard sizes for your commercial, industrial, and residential project needs. Feel free to call us anytime at 1-800-609-2917 if you need Access Doors and Panels to supply the quality products you need for your construction needs.
