PFI GYP

PFI GYP

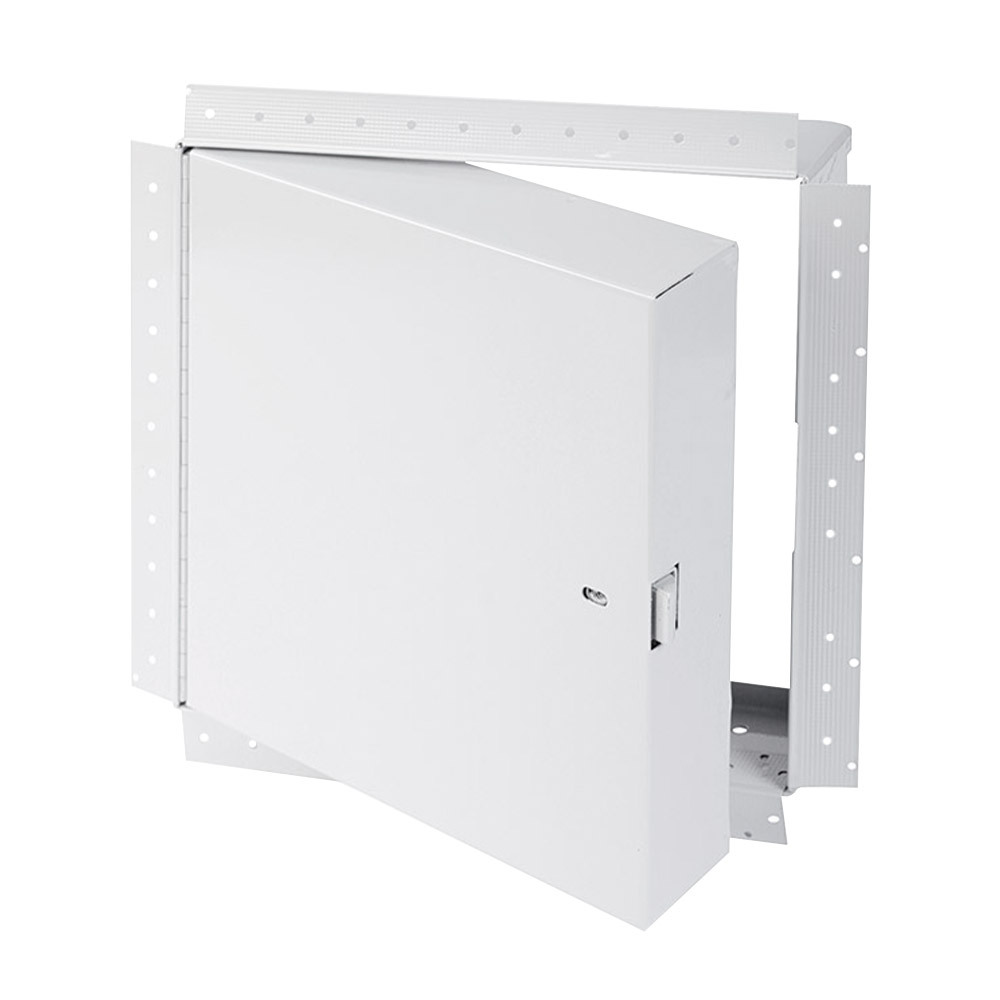

The PFI-GYP Fire Rated Insulated Access Door with Drywall Flange is specially designed to be installed on fire-rated drywall-covered ceilings and walls. Once a sufficient layer of drywall compound is applied to its corner bead flange, it will leave only the door panel visible for a more aesthetic look.

Once the installation is complete and the provided springs are hooked to the back of the panel, this door will be self-closing and self-locking thus meeting fire certification standards. The largest fire-rated PFI-GYP doors available for vertical and horizontal installations are respectively: (48" x 48") and (24" x 36" or 864 sq inches).

Specifications:

DOOR SIZE: 22" wide x 30" high

ROUGH OPENING SIZE: 22 ¼ wide x 30 ¼ high

FINISH: High-Quality White Powder Coat

FLANGE: 1 ⅛ drywall corner bead flange"

HINGE: Continuous piano hinge

LOCK / LATCH: 1 x Self-latching tool-key operated latch and/or ring operated latch, both included

MATERIAL: 16 gauge cold rolled steel frame and 20 gauge galvanneal steel door



We are happy to assist you from the beginning of your project to its completion, ensuring that the best product and pricing have been made. Feel free to call us anytime at 1-800-609-2917 or email us at [email protected] We are looking forward to supplying your building project!
