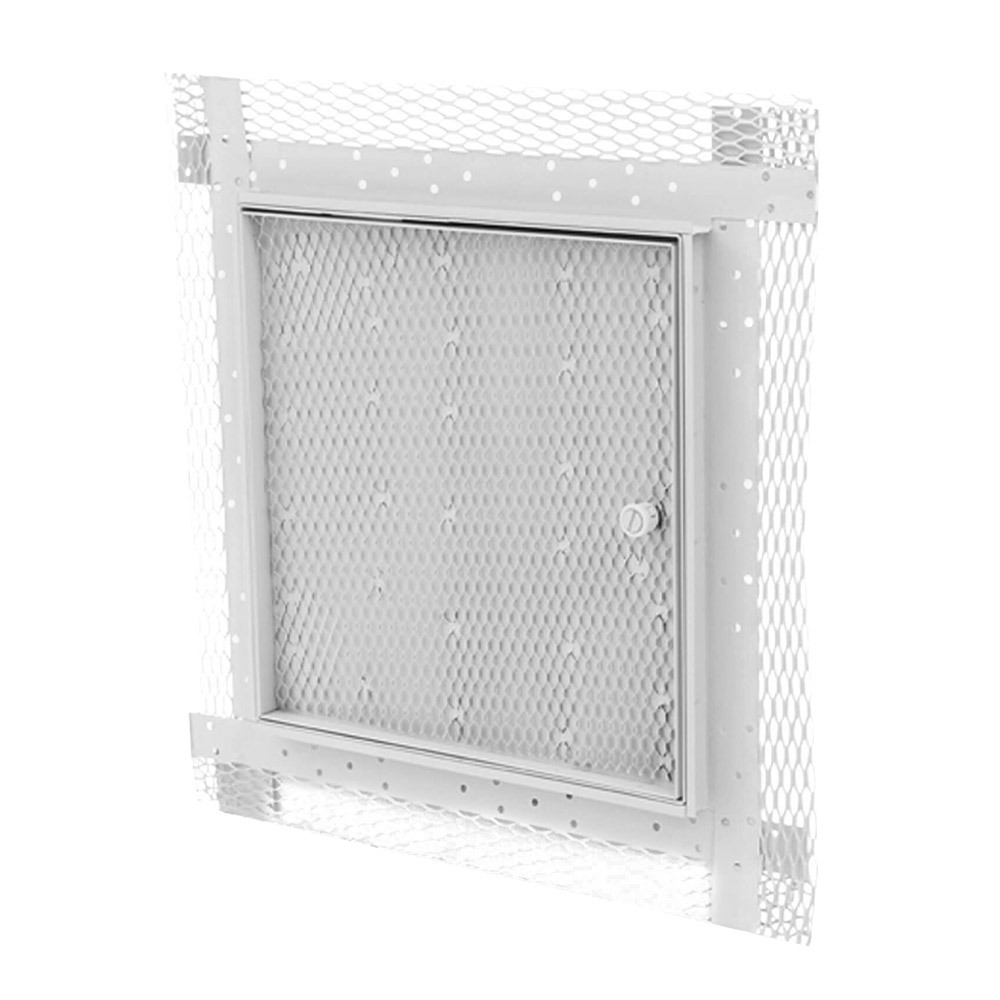

The AP Series Recessed Access Door is designed for use in acoustical plaster walls and ceilings. The door is recessed 5/8" and is lined with self-furring lath. An expansion casing bead with a 3" wide galvanized lath, included as part of the frame, provides a clean, tight finish between the frame and plaster and also adds reinforcement.

Product Features:

  • The door is recessed 5/8" and is lined with self-furring lath
  • Expansion casing bead with 3" wide galvanized lath

SPECIFICATIONS:

  • DOOR SIZE: 12" wide x 12" high
  • ROUGH OPENING SIZE: 12 ⅜" wide x 12 ⅜" high
  • MATERIAL: 16 gauge cold rolled steel door, 14 gauge mounting frame
  • LOCK/LATCH: 1 x Flush to the surface, screwdriver operated cam latch
  • FLANGE: Expansion casing bead with 3" wide galvanized lath, recessed 3/4" to receive plaster
  • HINGE: Concealed, pivoting rod type.
  • FINISH: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel

We offer all standard sizes for your commercial, industrial, and residential project needs. Feel free to call us anytime at 1-800-609-2917 if you need Access Doors and Panels to supply the your right access doors for your construction project.
