RHG

RHG

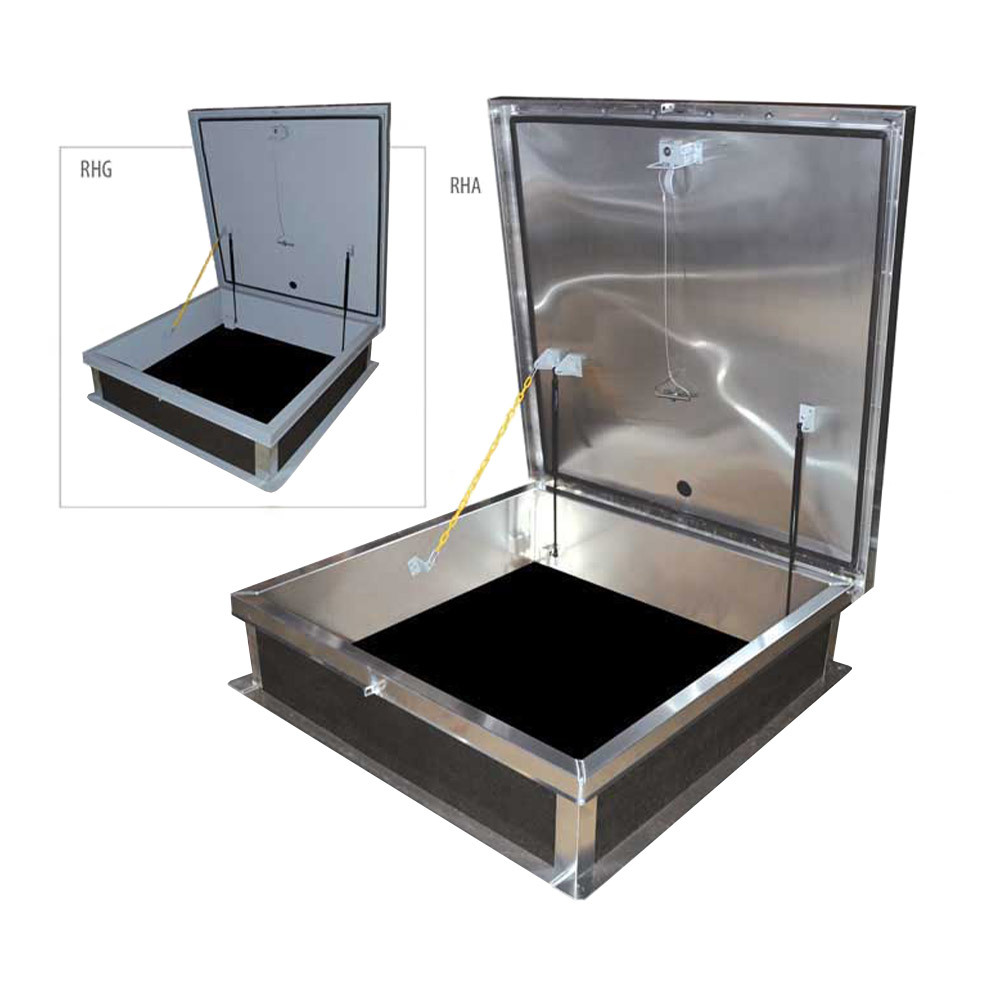

The RHG Galvanized Roof Hatch is designed to provide convenient, economical access to the roof of a building. Our hatches are designed with safety, durability, and ease of operation in mind. It features a sturdy weather-tight construction and a convenient one-hand operation with a 12" high insulated curb.

SPECIFICATIONS:

Cover: Double-skin construction (“in box type design”) with 1" cellulose insulation and a continuous EPDM foam weather/draft seal gasket that is attached to the inside of the cover to provide a flush, tight fit. Designed to support a live load of 40lbs./sq. ft., the cover is 14 gauge galvanized steel with a 22 gauge galvanized steel inside liner.

Curb: 14 gauge galvanized steel with 1" thick fiberboard roof insulation at curb exterior. Curb is 12" high, with 3.375" wide bottom flange and pre-drilled mounting holes.

Hinge: Heavy-duty galvanized steel pintle hinges with 3/8" pin

Opening: Gas spring operators allow the cover to open and close

with ease. Inside pull, the handle allows for easy control when closing the cover.

Door Latch: Self latching, zinc plated outside T handle with stainless steel inside lock and lever assembly. The unit also has inside and outside padlock provisions.

Finish: Material is prepared with an iron phosphate wash, followed by a rust-inhibiting primer, and then a baked-on polyester enamel grey paint.
