24" x 32" Low Profile Bronze Vision Lite w/ Tempered Glazing - Best

24" x 32" BA-VLLPB-TMP Low Profile Bronze Vision Lite W/ Tempered Glazing - Best

Standard vision lites can be unsafe because their glass breaks easily, and they often don’t align with the modern look people want for today’s interiors. This highlights the need for a solution that combines safety and style.

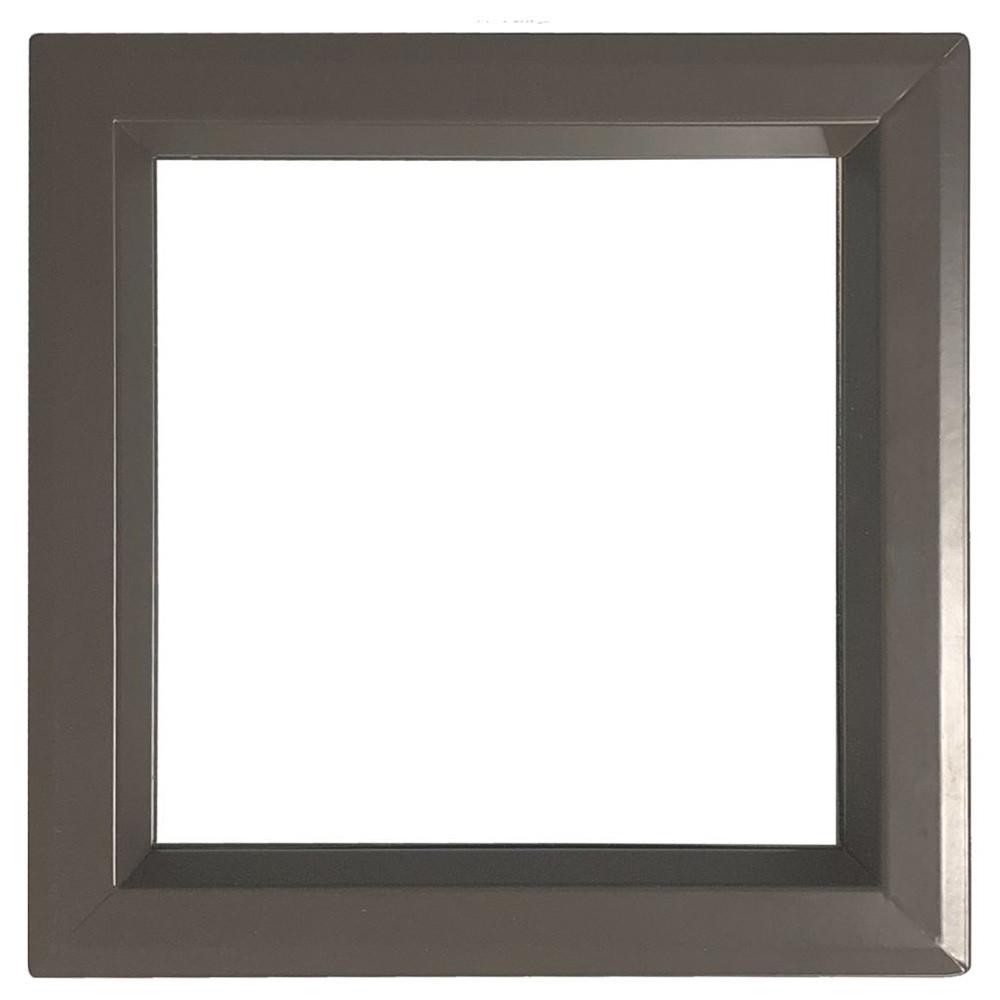

The 24" x 32" BA-VLLPB-TMP low profile bronze vision lite with tempered glazing is designed to enhance safety and aesthetics. Its low-profile frame, made of 20-gauge cold-rolled steel with a mineral bronze powder coat, mounts flush to 1-¾" thick doors.

It features 1/4" non-rated tempered glass for added durability, making it a great fit for indoor spaces that don’t require fire ratings. Installation is quick and straightforward, thanks to self-attaching fasteners in various sizes.

This product works well in a variety of indoor environments. It boosts the appearance and safety of interior doors in office buildings, schools, and healthcare facilities, offering clean, sturdy glass for non-fire-rated settings. Overall, it helps protect interior doors from glass breakage while improving their visual appeal.

Why Should You Choose the 24" x 32" BA-VLLPB-TMP?

• Enhanced Safety: Tempered glass is more resistant to impact and breaks safely, greatly reducing the chance of injury.
• Modern Look: The slim design gives interior doors a clean and modern look.
• Sturdy Build: The 20-gauge cold-rolled steel frame provides lasting performance and reliability.
• Easy Installation: Its self-attaching fasteners make installation straightforward, lowering labor costs.
• Versatile Use: The BA-VLLPB-TMP is ideal for indoor areas where safety and style matter.

Product Specifications

• Dimensions: 24" x 32"
• Door Cutout: Dimensions (Width x Height)
• Glazing Size: Dimensions minus 1" (Width - 1" x Height - 1")
• Exposed Glazing: Dimensions minus 2" (Width - 2" x Height - 2")
• Application: Suitable for doors 1-¾" thick and glazing thickness between 3/16" and 5/16"
• Frame Material: 20-gauge cold-rolled steel
• Standard Finish: Mineral bronze powder coat
• Fasteners: #8A x 1-¼” Flathead Phillips screws to match the finish
• Fire-rating: UL listed for ANSI/UL 10B, ANSI/UL 10C, and CAN/ULC S104 when installed correctly in rated doors. Fire-ratings up to 180 minutes can be achieved depending on the exposed glazing size and area.
• Included Glazing: 1/4" non-rated tempered glass.

Note: This fire rating only applies to the frame. This product is NOT fire-rated when fitted with the included tempered glass.

Don’t settle for regular glass; choose the enhanced durability and sleek design your projects need. Visit Access Doors and Panels and upgrade your interior door designs with the BA-VLLPB-TMP. Contact us today and bring a new level of style to your interiors.
