12" x 12" WID Exterior Access Door / Walk-In Door - 2" Insulation - MIFAB
Need another size? Click here
Downloads
Product Details

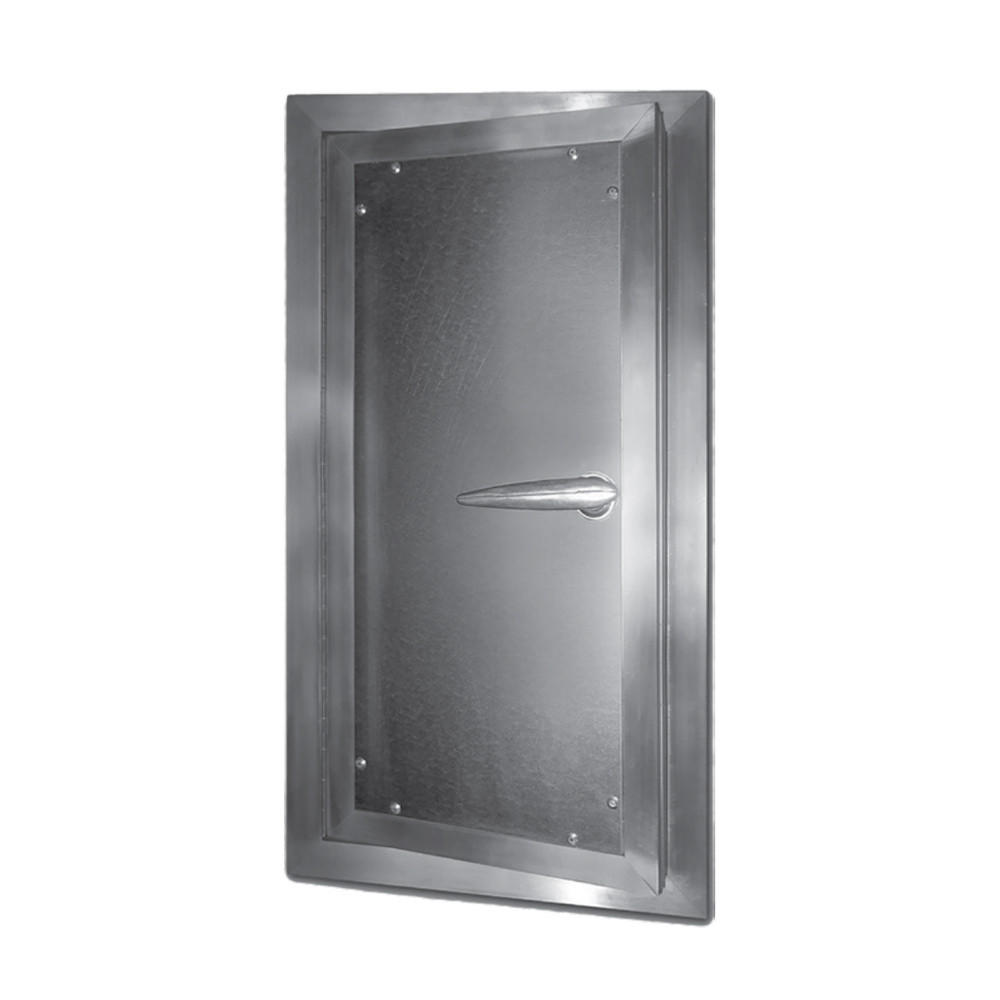

12" x 12" WID Exterior Access Door / Walk-In Door - MIFAB
The MIFAB® WID exterior access doors are designed to provide convenient access to any exterior application, or anywhere that requires protection against air leakage and/or water penetration. WID doors are also designed to serve the custom air handling equipment manufacturers, as well as mechanical contractors who field assemble built-up air handling systems. All WID doors are manufactured with extruded aluminum flanged frames and door panel frames. Door panels are satin coat steel with optional stainless steel and aluminum sheet inserts. Door panels are insulated and gasketed. WID doors can be manufactured in custom sizes from 12” x 12” to 96” x 96”.
Door Size: |
12" wide by 12" high
|
Rough Opening Size: |
N/A
|
Material: |
20 gauge satin coat steel door with 0.060" extruded aluminum door frame
|
Lock / latch: |
Dual acting compression handles-operable from both sides.
|
Flange: |
0.080" extruded aluminum flanged frame
|
Hinge: |
Zinc Plated Steel Continuous Type
|
Finish: |
Mill Finish
|
Product Spec PDF: |
