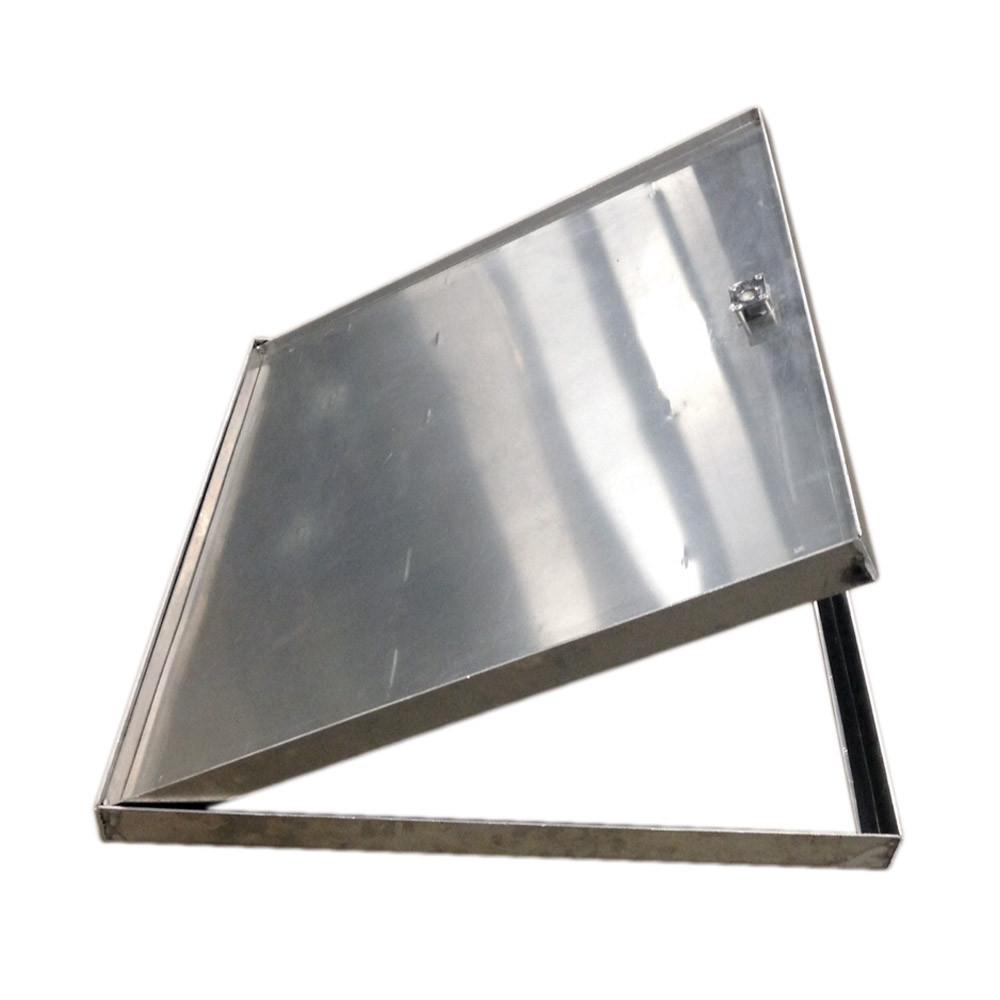

3'0" x 3'0" - Non Security Aluminum Floor Door - 1/8" Plate & 1/8" Recessed for Floor Tiles

Need another size? Click here
Downloads

Product Details

3'0" x 3'0" - Non Security Aluminum Floor Door - 1/8" Plate & 1/8" Recessed for Floor Tiles

download-button.jpg  left-arrow.pngDownload Technical Data / Submittal Sheet (F/T/Z)



Specifications:

  • Material:
    • F: 1/4” Aluminum Tread Plate and extruded aluminum frame
    • T & Z: 1/8” Aluminum Plate and extruded aluminum frame
  • Finish:
    • Mill Finish
  • Cover:
    •  F: Diamond patterned safety tread plate designed to support minimum of 200 psf live load.
    • T: 1/8” Recessed for floor tile to support minimum of 200 psf live load
    • Z: 11/16” Recessed for terrazzo to support minimum of 200 psf live load
  • Frame:
    •  F & T: 1/8” Extruded aluminum frame w/ integral masonry anchors
    • Z: 1/8” fully welded and mitered aluminum frame w/ welded masonry anchors
  • Gasket:
    • 1/16” Neoprene gasket adhered to frame ledge
  • Latch:
    • NONE
  • Handle:
    • Lift Ring for easy access
  • Lift Assistance:
    • NONE
  • Hardware:
    • Stainless steel



Milcor Heat & Smoke Vents Protect in the Event of Smoke & Fire: Opens instantly when UL listed fusible link is exposed to a temperature of 165 degrees to release noxious smoke and deadly gases out of the building.

Door Size:
3'0" wide x 3'0" high
