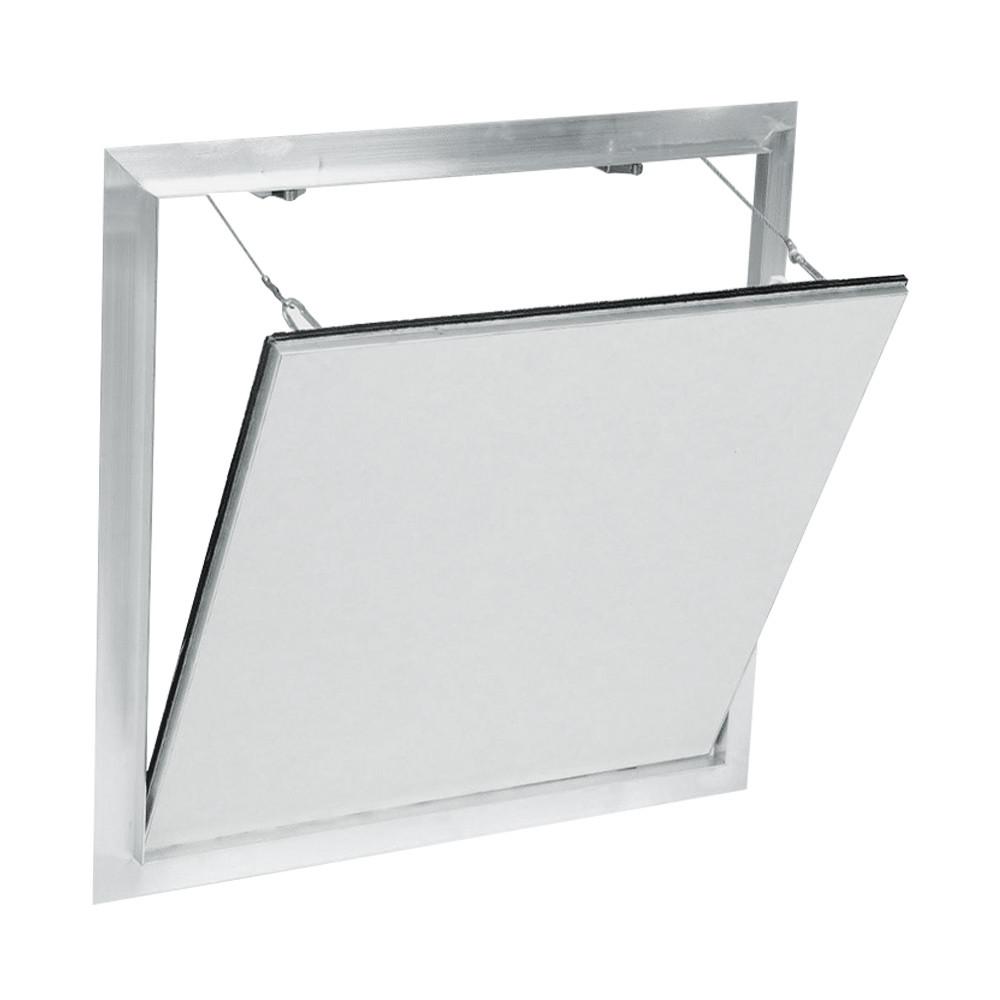

24" x 36" Drywall Inlay Access Panel with detachable hatch

F2AKL - Aluminum frame, with drywall insert, for ceilings, drywall, and various applications

The access panel consists of a welded aluminium frame and is available with or without 1/2" (12.7 mm) or 5/8" (15.9 mm) inlayed drywall and two latches (comes standard with inlay and touch latches).
Both an outer and an inner frame assembly consists of high grade aluminium which is bonded with a special welding process. For sizes 12" x 12" (305 mm x 305 mm) and up the access panels are equipped with a safety-system to prevent accidental opening. This safety system must be reattached if the hatch is removed.
The reveal of 1/16 of an inch (1.59 mm) is visible between the outer frame and door hatch. The concealed snap locks open the access panel when pressure is applied to the spring-loaded latch side.
This access panel is designed to limit the amount of air/dust leaving the room.

download-button.jpg  left-arrow.pngDownload Technical Data / Submittal Sheet (F2AKL-0.5)  - 5/8"

download-button.jpg left-arrow.pngDownload Technical Data / Submittal Sheet (F2AKL-0.5) - 1/2"


Special advantages

  • Superior engineering & innovative design
  • Fast delivery
  • Quick and easy installation
  • Solid aluminum frame
  • Flush installation in ceilings and walls
  • Available in moisture resistant, mildew resistant and cement board

Customized solutions

Customized sizes can be produced in every dimension upon request. (Request a Quote)

Door Size:
24" wide x 36" high
Excellent Services


FF Systems 24 x 36 Drywall Inlay Air/Dust resistant Access Panel with detachable hatch
SKU # F2AKL-24-36-58-R

24" x 36" Drywall Inlay Air/Dust resistant Panel with Detachable Hatch - FF Systems

(You save $32.34 )
