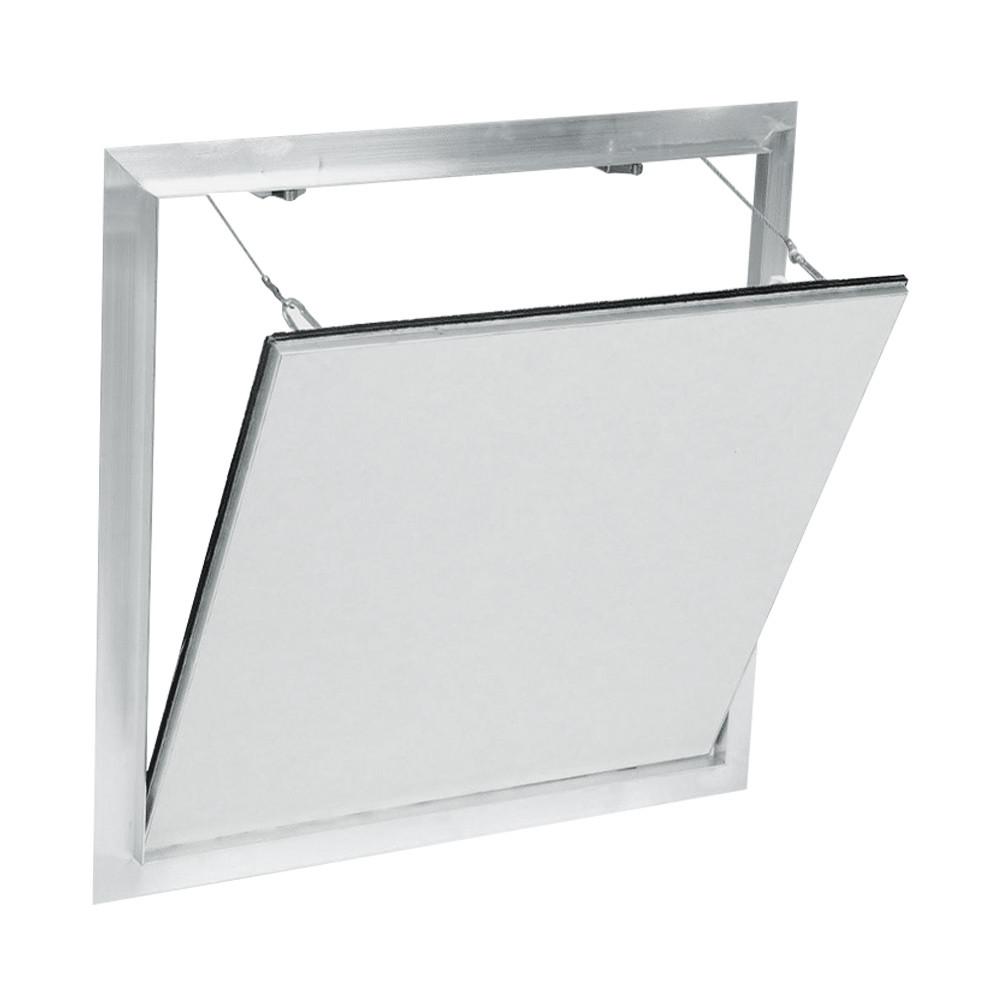

16" x 16" Drywall Inlay Access Panel with detachable hatch

F2AKL - Aluminum frame, with drywall insert, for ceilings, drywall, and various applications

The access panel consists of a welded aluminium frame and is available with or without 1/2" (12.7 mm) or 5/8" (15.9 mm) inlayed drywall and two latches (comes standard with inlay and touch latches).
Both an outer and an inner frame assembly consists of high grade aluminium which is bonded with a special welding process. For sizes 12" x 12" (305 mm x 305 mm) and up the access panels are equipped with a safety-system to prevent accidental opening. This safety system must be reattached if the hatch is removed.
The reveal of 1/16 of an inch (1.59 mm) is visible between the outer frame and door hatch. The concealed snap locks open the access panel when pressure is applied to the spring-loaded latch side.
This access panel is designed to limit the amount of air/dust leaving the room.

Special advantages

  • Superior engineering & innovative design
  • Fast delivery
  • Quick and easy installation
  • Solid aluminum frame
  • Flush installation in ceilings and walls
  • Available in moisture resistant, mildew resistant and cement board

Customized solutions

Customized sizes can be produced in every dimension upon request. (Request a Quote)

Product Spec Sheet:
Door Size:
16" wide x 16" high
Material:
Aluminum
Excellent Services
FF Systems 16 x 16 Drywall Inlay Air/Dust resistant Access Panel with detachable hatch
SKU # F2AKL-16-16

16" x 16" Drywall Inlay Air/Dust resistant Panel with Detachable Hatch - FF Systems

$206.00
$147.29
(You save $58.71 )
