16" x 16" Hinged HVAC Duct Access Door for Sheet Metal Duct - BEST

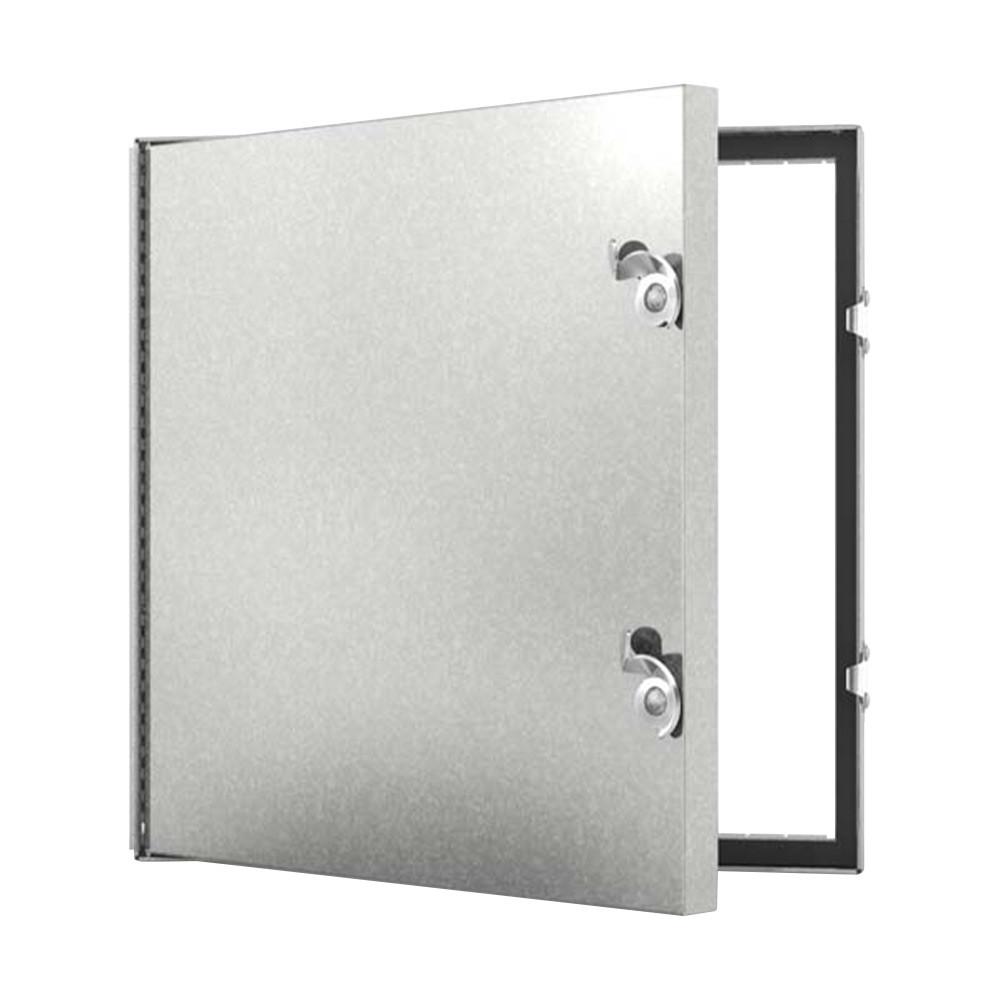

16" x 16" BA-HHAD Hinged HVAC Duct Access Door for Sheet Metal Duct

Your HVAC system needs proper care to work well. Weak seals can hurt performance, cause air leaks, and raise utility bills. The BA-HHAD hinged access door is a great solution for duct access. It is made from 24-gauge galvanized steel and has a hinged door with 2 inches of insulation and double gaskets. This setup creates a strong, airtight seal that helps prevent energy loss.

Constructed from 24-gauge galvanized steel, the BA-HHAD features a hinged door with 2 inches of fiberglass insulation and double gaskets. This design creates a strong, airtight seal that helps reduce energy loss and improve system performance.

Installation is straightforward with 5/8" notched tabs, while hand-operated cam latches provide secure closure. Optional cylinder locks can be added for extra security, making the BA-HHAD a smart choice for safe and efficient HVAC access.

Why Should You Choose the BA-HHAD?

• Energy Efficient Design: The insulated door's R-7.7 rating and dual-gasketing system create an airtight seal that cuts energy loss and lowers costs.
• Easy and Secure Access: The continuous piano hinge allows for smooth access. At the same time, the self-tightening cam latches ensure a secure closure after every inspection or repair.
• Durable Construction: Made from 24-gauge galvanized steel and a heavy-duty aluminum hinge, this door withstands tough ductwork conditions and resists corrosion for reliable performance.
• Quick and Simple Installation: With 5/8" notched tabs, installation is fast and easy, saving you time and labor.
• Customizable Security Features: Available security options, such as cylinder locks and hasps, enhance safety by letting you choose the level of security that fits your needs.

Avoid using standard access doors that don't meet your project's needs. Instead, choose custom access solutions that complement your project! This will help you achieve the ideal results for your project. Call 1-888-982-9434 now for the specific dimensions and quality you need.

Product Specifications

• Dimensions: 16" x 16"
• Application: Designed for easy access to sheet metal ducts for maintenance, inspection, and repairs.
• Type: Hinged duct door.
• Pressure Rating: Suitable for low to medium pressure up to 3" static W.G. (Water Gauge).
• Air System Integrity: Assures a tight seal without obstruction in the air system.
• Materials: The door and mounting frame are made of 24-gauge galvanized steel (including 5/8" notched knock-over tabs for easy installation), complemented by a continuous aluminum piano hinge.
• Insulation: The door panel features 2" fiberglass insulation compressed to 1" for a thermal resistance of R-7.7.
• Gasketing: 1/8" thick by 1/2" wide closed-cell neoprene, applied between the door and frame and between the frame and duct for a comprehensive seal.
• Latching Mechanism: Self-tightening, hand-operated cam latch (standard); optional cylinder lock & key, hasp + staple, or L-handle available.
• Duct Opening: Normal door size minus approximately 1 1/4" (31mm). For specific opening dimensions, refer to the individual product's submittal sheet.
• Number of Latches: Typically, there is one latch for smaller sizes (e.g., 6x6 to 12x12) and two for larger sizes (e.g., 14x14 to 24x24).
• Packaging: Individually wrapped, 1 door per box.

Are you having trouble accessing hard-to-reach ducts? Upgrade to the BA-HHAD hinged duct door for better energy efficiency and easier maintenance. Avoid extra costs from difficult access. Call +1-888-982-9434 today for a reliable, airtight solution built to fit your project.
