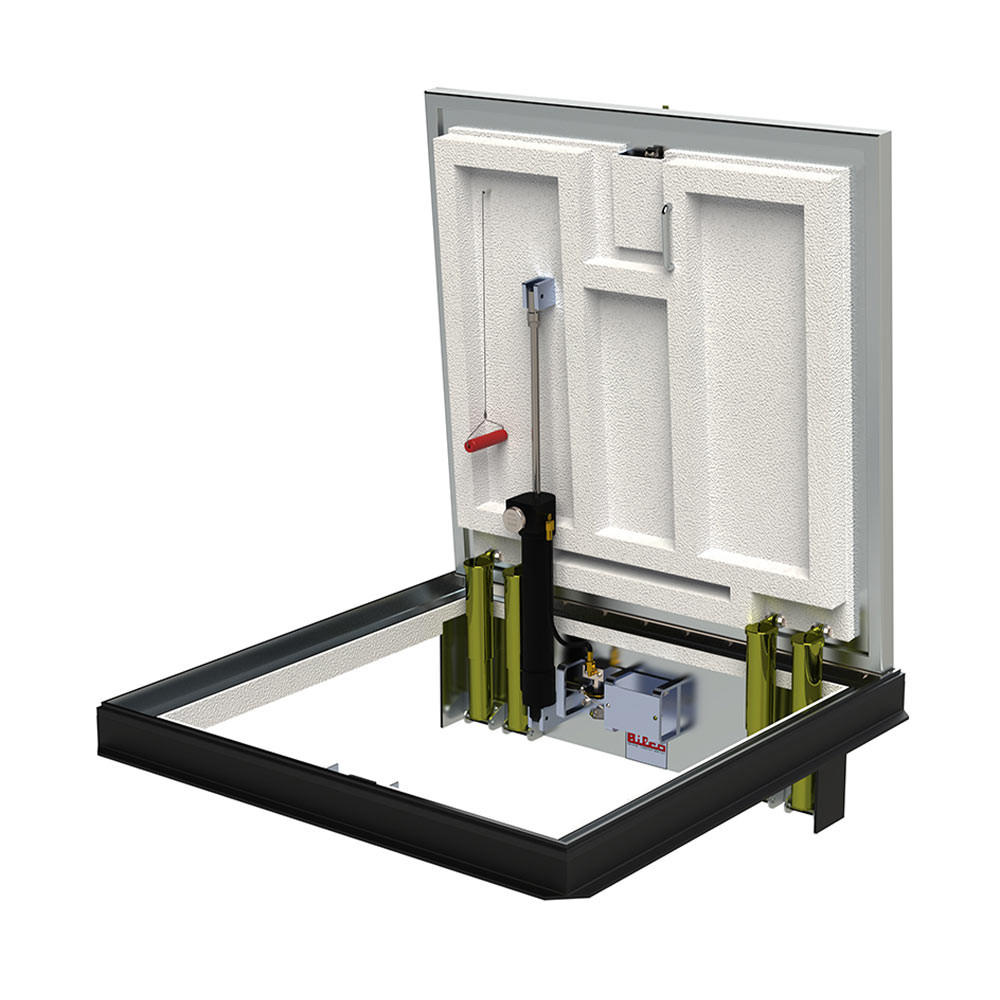

FR-LC 30" x 48" Fire Rated Floor Door without Automatic Closing System - Aluminum - Bilco

The FR-LC Floor Access Doors - Fire Rated Floor Door without Automatic Closing System - Aluminum has a corrosion-resistant aluminum with an automatic closing system to ensure safe egress and a design to accept flooring materials for concealed access.

Why install the FR-LC?

Affordable: The FR-LC floor access door also provides a cost-effective solution to address your roof hatch needs for your commercial building. In addition, this product is easy to install with its precast feature that assures less labor.

Super-Durability: This floor access is tough and long-lasting with its aluminum material. No need to worry about corrosion with its 1/4" (6mm) aluminum cover and extruded aluminum frame that promises long-lasting durability. A superb fire resistance with its certifications of ASTM E119, NFPA 251, NFPA 288, UL-listed (File R15197) and BS476: Part 22.

Variety: If you are looking for multiple product options, you can choose from FR-LC 's various sizes that will surely fit your commercial building.

Specifications:

  • Material: 1/4" (6mm) aluminum cover and extruded aluminum frame
  • Cover: Aluminum plate reinforced for 150 psf (732 kg/m2) live load. Applied with an intumescent fire coating to the underside of the cover.
  • Frame: Extruded aluminum frame with built-in anchor flange around the perimeter. Intumescent fire coating on the interior surfaces of the structure.
  • Hinges: Comes with a continuous heavy-duty type 316 stainless steel hinge.
  • Latch: Pneumatic self-closing system that automatically closes the door in the event of a fire when heat parts a UL-listed 165°F (74°C) fusible link.
  • Lift Assistance: Compression spring operators enclosed in telescopic tubes. A mechanical hold-open system with a release button automatically holds the cover in the open position.
  • Performance Ratings: Tested under ASTM E119, NFPA 251, NFPA 288 and UL-listed (File R15197) as having a 2-hour fire rating when exposed to fire from the underside. It complies with BS476: Part 22 for a 1-hour rating.
  • Finish: Mill Finish aluminum with a bituminous coating applied to the exterior of the frame.
  • Hardware: Made with Type 316 Stainless steel hinges. All other hardware is zinc-plated/chromate sealed.

Call Us Today!

Why Choose Access Doors and Panels? Because we are your reliable source of practical and handy access panels for your walls, ceilings, floors, and even your roofing system. We understand your access and security needs, so you can always talk to our expert product specialists and apply for credit! Call us at (800)-609-2917 and experience our excellent products and services!

Door Size:
30" wide x 48" high
Material:
Aluminum
Cross Reference:
Excellent Services
BILCO 30" x 48" Fire Rated Floor Door without Automatic Closing System - Aluminum - Bilco
SKU # FR-LC-30-48

30" x 48" Fire Rated Floor Door without Automatic Closing System - Aluminum - Bilco

$17,125.29
$12,232.35
(You save $4,892.94 )
