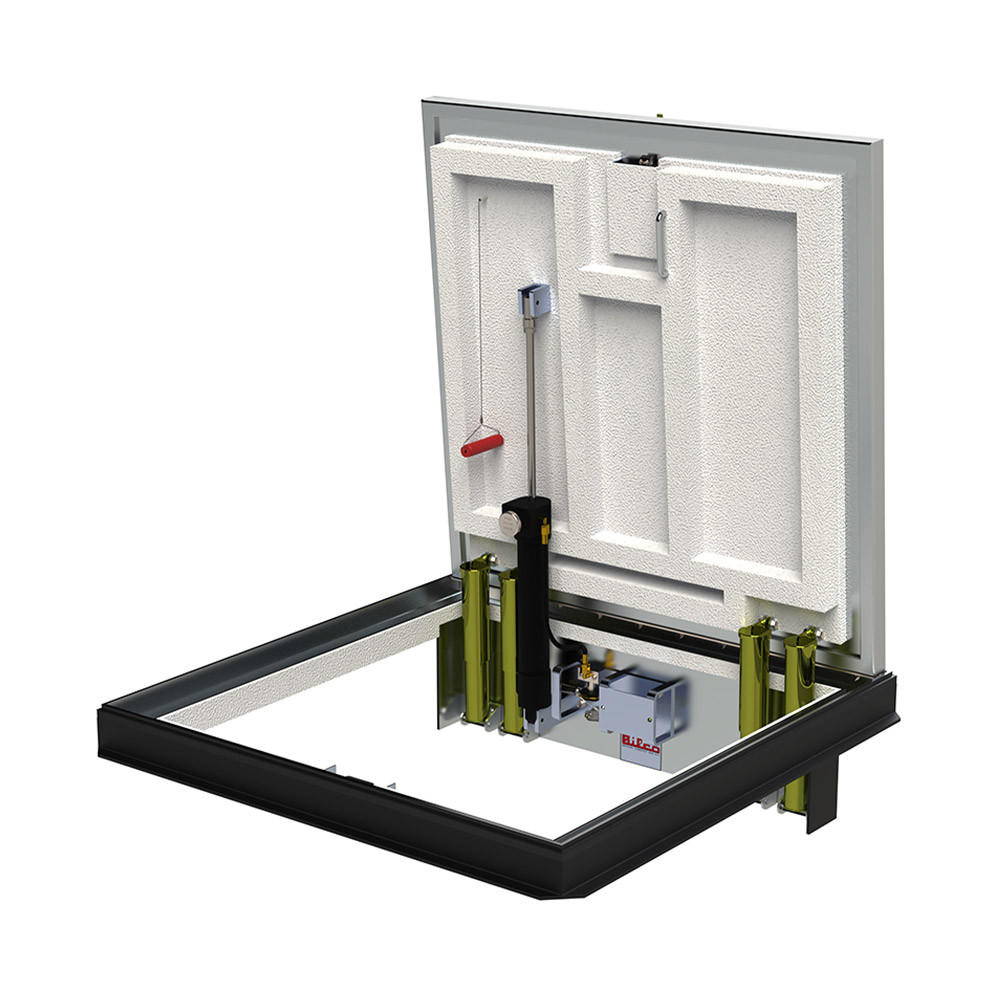

FR 30" x 48" Fire Rated Floor Door – Aluminum – Bilco

Bilco's FR Fire-Rated Floor Door – Aluminum must install floor access panels to help prevent the spread of fire and limit the property and structural damages to the building. Most construction professionals prefer installing fire-rated floor doors to protect important documents, units, and systems, such as plumbing and ducts, from fire for up to 2 hours.

Why Install FR?

Compliance: Bilco's FR floor door complies with and meets fire-rated codes and standards, which include NFPA 251 and NFPA 288. Additionally, the floor door follows ASTM E119 and BS476: Part 22 requirements to ensure building occupants and fire rescue teams can safely and securely use the floor panel during fire accidents.

Fire Protection: The fire-rated floor hatch serves as a barrier that can efficiently contain and prevent the spread of fire and smoke for a specific period, allowing the occupants to secure necessary materials and files. It will also provide the rescue team with enough time to save the occupants inside the building.





Safe Access: The floor door promotes safety and security, especially during a fire. The company equipped the FR model with sturdy materials, a durable structural design, and a non-slip surface to avoid any slip and fall accidents during a fire.

 Specifications

  • Material:

1/4" (6mm) aluminum cover and extruded aluminum frame

  • Cover:

Aluminum plate reinforced for 150 psf (732 kg/m2) live load.

  Applied intumescent fire coating to the underside of the cover*. Designed with a 1" (25 mm) fillable pan for field installation of architectural flooring material up to 1/2" (13 mm) thickness (specify flooring material including type, consistency, and weight). You must fill the remaining depth with concrete to maintain the fire rating of the door assembly (for undesired finish floor, you must supply the pan with 1" (25 mm) of concrete).

  • Frame:

Extruded aluminum frame with built-in anchor flange around the perimeter. The interior surfaces of the structure have an intumescent fire coating.

  • Hinges:

Continuous heavy-duty type 316 stainless steel hinge.

  • Latch:

Pneumatic self-closing system that automatically closes the door in the event of a fire when heat parts a UL-listed 165°F (74°C) fusible link.

  • Lift Assistance:

Compression spring operators enclosed in telescopic tubes. The mechanical hold-open system with a release button automatically holds the cover in the open position.

  • Performance Ratings:

Tested following ASTM E119, NFPA 251, NFPA 288, and UL-listed (File R15197) as having a 2-hour fire rating when exposed to fire from the underside. It complies with BS476: Part 22 for a 1-hour rating.

  • Finish:

Mill Finish aluminum with a bituminous coating applied to the exterior of the frame.

  • Hardware:

Type 316 Stainless steel hinges. All other hardware is zinc-plated/chromate sealed.



* Type FR Fire Rated Floor Doors are for interior applications only. Ensure that the door is moisture-free before installation. Consult BILCO in cases of exposure to exterior conditions, water, or high humidity.

Get the Best Deal Today!

Access Doors and Panels offers a vast collection of reliable and customizable roof hatches that your building needs! Call us at (800)-609-2917 and get the best deal for your existing and upcoming projects! You may also check our blogs and expert articles here to learn more about the product.

Door Size:
30" wide x 48" high
Material:
Aluminum
Excellent Services
BILCO 30" x 48" Fire Rated Floor Door - Aluminum - Bilco
SKU # FR-FIRE-30-48

30" x 48" Fire Rated Floor Door - Aluminum - Bilco

$25,114.95
$17,939.25
(You save $7,175.70 )
