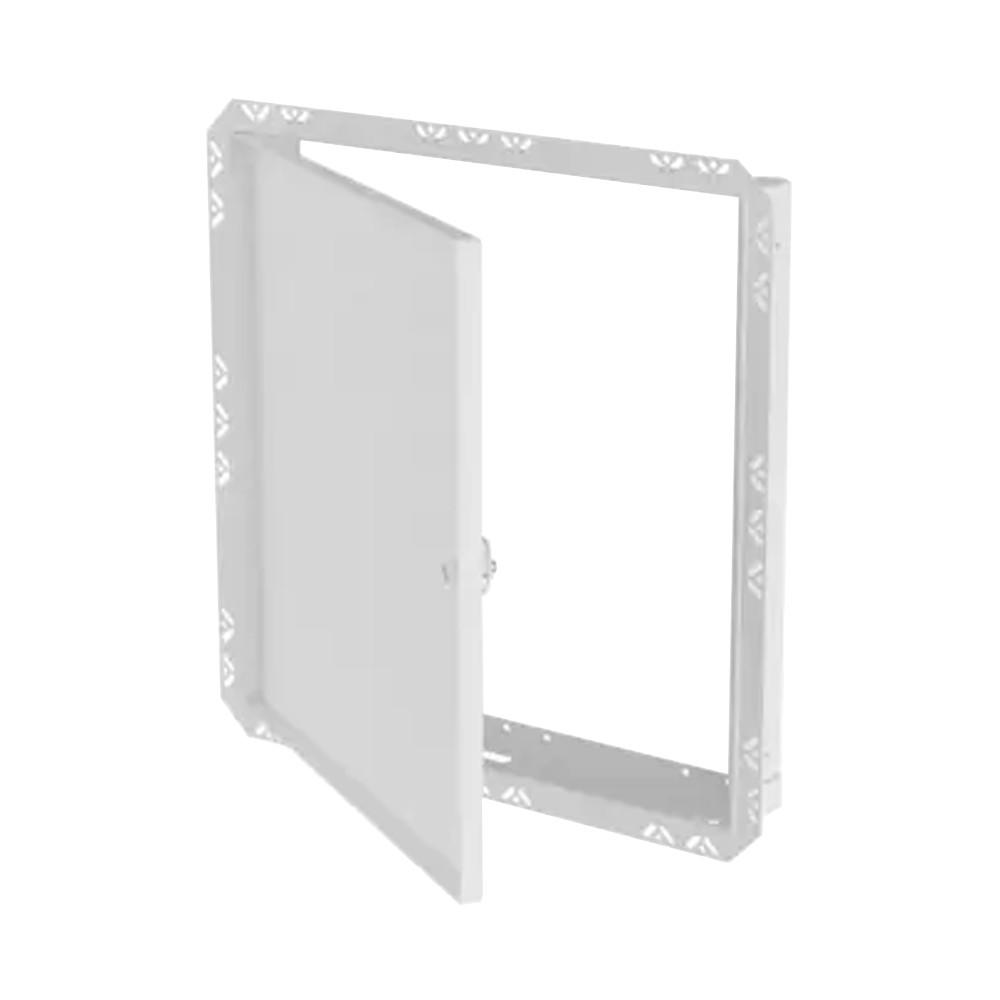

BRP - 24" x 36" Nonrated Recessed Panel - Plaster Bead Flange - Babcock-Davis

The BRP Nonrated Recessed Panel – Plaster Bead Flange is ideal for ceiling surfaces that do not need fire-rating protection but requires an access panel to provide convenient access to the building's basic units and systems concealed behind the wall.

Why Install BRP?

Added Security: The security and quality of the 16-gauge steel can effectively protect the HVAC units, generators, cable wires, and other essential building components from unauthorized access. The heavy-duty steel and the advanced locking mechanism also serve as an extra layer of security against unauthorized access.

Accessibility: The access door provides convenient access to the facility's essential components, such as mechanical, electrical, plumbing, and heating and ventilation systems allowing the service team to quickly inspect, repair, and fix the units.

Conceals unsightly systems: The BRP's recessed access panel and white powder coat finish preserve the building's aesthetic by hiding the components that may disrupt the area's overall look.

Specifications

Door: 16 gauge Steel

Frame:16 gauge Steel

Size: Min: 8 inches by 8 inches

Max: 24 inches by 36 inches

Installation: Ceiling

Flange: Plaster Bead

Latch: Screwdriver Cam Latch, Key Operated Cam Lock, or Mortise Lock Prep

Hinge: Concealed pivoting rod

Pan Depth: 5/8 inch

Finish: White Powder Coat

Options: Flanges, Latches, Gaskets

Warranty: 1 year

Get the Best Deals Now!

Already have a list of products from our vast selection of access doors, roof hatches, and floor panels? If customization is the next agenda on your list, it's time to talk with our knowledgeable and experienced-laden product experts.

Ring us at (800) 609-2917, and our product experts will be right there with you!

Product Spec Sheet:
Door Size:
24" x 36"
Material:
Steel
Rough Opening:
24.25" wide x 36.25" high
Door:
16 gauge Steel
Frame:
16 gauge Steel
Flange:
Plaster Bead Flange
Latch:
Screwdriver Cam Latch, Key Operated Cam Lock or Mortise Lock Prep
Hinge:
Concealed spring button
Finish:
White Powder Coat
Options:
Flanges, Latches, Gaskets
Cross Reference:
Excellent Services
Babcock Davis 24" x 36" Nonrated Recessed Panel - Plaster Bead Flange - Babcock-Davis
SKU # BRP-24-36

24" x 36" Nonrated Recessed Panel - Plaster Bead Flange - Babcock-Davis

$637.72
$455.52
(You save $182.20 )
