24" x 24" Fire Rated Un-Insulated Recessed Door for Tile Walls - Acudor

Need another size? Click here
$330.00
SKU:
FB-5060-TD-24-24
Availability:
Contact Us
  • 24" x 24" Fire Rated Un-Insulated Recessed Door for Tile Walls - Acudor

Questions?

Speak with ourAccess Door product experts who will assist you with all your product and shipping needs!

1-800-609-2917
Frequently bought together:
Downloads

Product Details

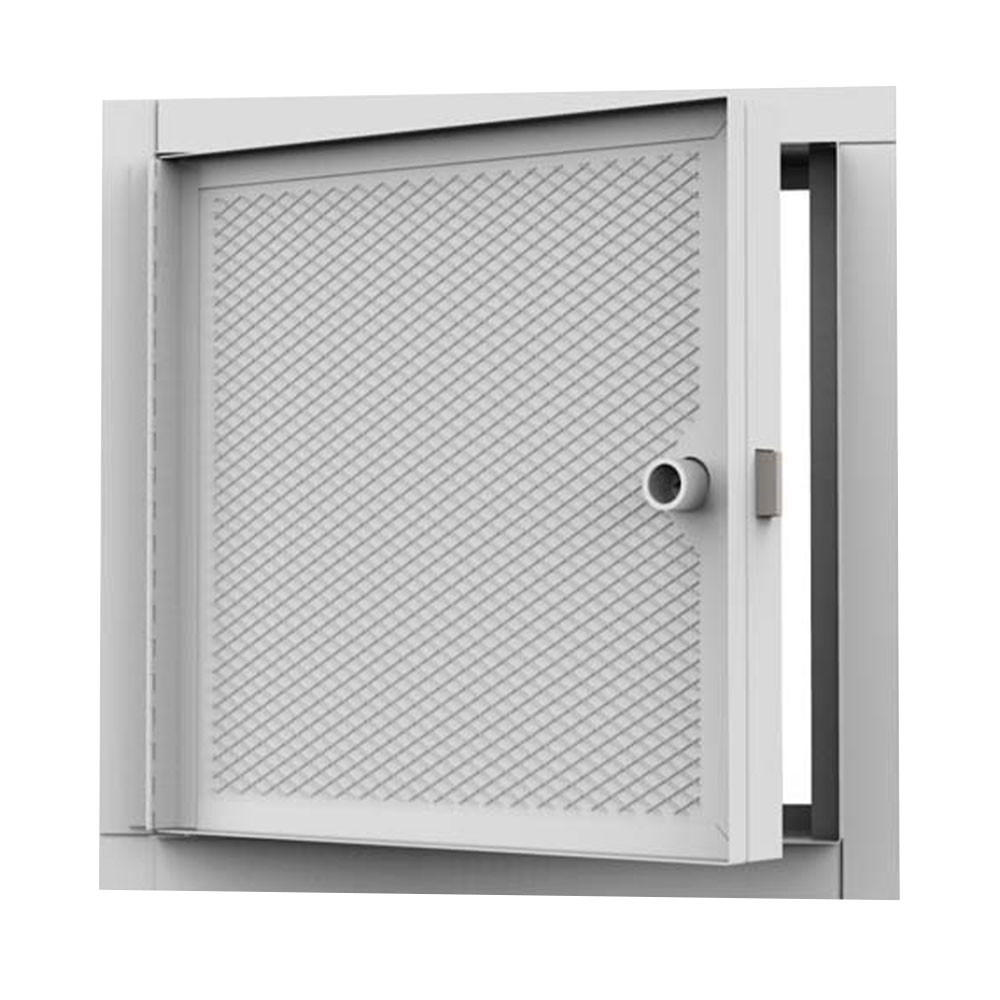

24" x 24" Fire Rated Un-Insulated Recessed Door for Tile Walls - Acudor

The FB-5060-TD recessed for tile, fire rated access door is an enhanced FB-5060 designed for use in tiled walls. The door is recessed 1/2" and is lined with self-furring lath. The Acudor FB-5060 is approved by Underwriters Laboratories (UL) for 1 1/2 hours "B" label in walls and ULC for 2 hours "B" label in walls. Designed to maintain continuity in a 2-hour fire barrier wall, the FB-5060 should be used whenever it is necessary to provide access in fire rated walls, when temperature rise is not a factor.

Door Size:
24" wide x 24" high
Rough Opening Size:
24 ⅜" wide x 24 ⅜" high
Material:
16 gauge steel door and frame with reinforced edges, door panel recessed 1/2” and lined with self-furring lath.
Lock/Latch:
1 x Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
Flange:
N/A
Hinge:
Continuous, exposed piano hinge
Finish:
5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
Product Spec PDF:
Product
Fire Rating:
UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label
qb_income_account:
Sales - USD
qb_product_sales_account:
TD (USD) - 2522 - 7200362
qb_cogs_account:
Cost of Goods Sold - USD
qb_shipping_line:
Shipping Income - USD
Dropship_Print:
Yes
Vendor Name:
Acudor - USA
qb_income_account:
Sales - USD
qb_product_sales_account:
TD (USD) - 2522 - 7200362
qb_cogs_account:
Cost of Goods Sold - USD
qb_shipping_line:
Shipping Income - USD
Dropship_Print:
Yes
Vendor Name:
Acudor - USA
View AllClose

Specifications

Door Size:
24" wide x 24" high
Rough Opening Size:
24 ⅜" wide x 24 ⅜" high
Material:
16 gauge steel door and frame with reinforced edges, door panel recessed 1/2” and lined with self-furring lath.
Lock/Latch:
1 x Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
Flange:
N/A
Hinge:
Continuous, exposed piano hinge
Finish:
5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
Product Spec PDF:
Product
Fire Rating:
UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label
