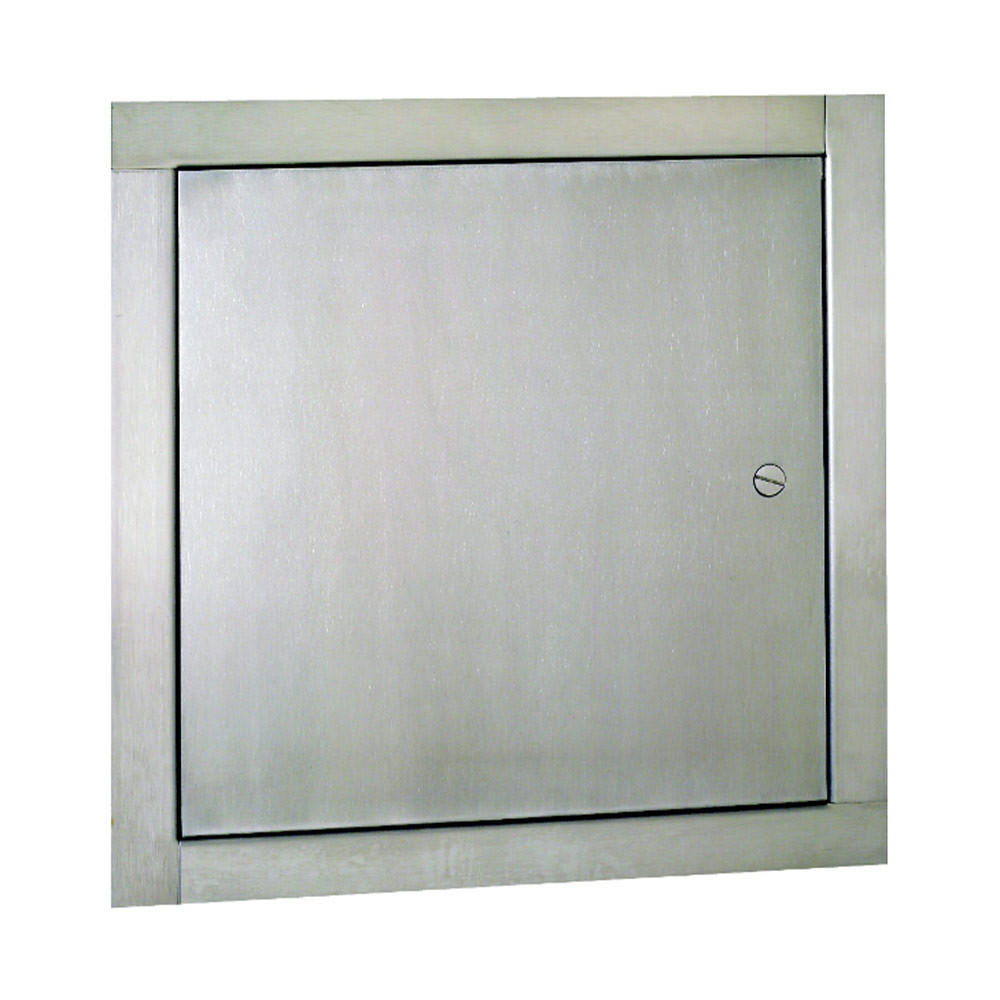

22" x 36" TMS - Multi-purpose Access Panel - Stainless Steel - For Walls & Ceilings - JL Industries

The TMS Multi-purpose Access Panel - Stainless Steel provides safe and excellent access to the building's essential components, such as plumbing, heating, air-conditioning, and electrical systems.

Why install the TMS?

Super Durability: You can tell that the TMS is very durable due to the materials used. 16 gauge stainless steel door and an 18 gauge stainless steel with 1" wall flange. Combined with the 304 stainless #4 satin finish, the TMS is a fantastic product with toughness and aesthetics.

Adaptability: The TMS is an adaptable access door that you can apply on a commercial building’s wallboard, plaster, or masonry openings. A 1" frame flange and rigidity which covers any openings, providing a clean look upon installation.

Variety: If you are looking for variety in a product, you can choose from TMS's various door sizes, materials, and parts that will surely fit your commercial building.

Specifications:

  • Frame: 18 gauge, stainless steel with 1" wall flange. 1-5/8" depth.
  • Door: 16 gauge, stainless steel mounted with 90° continuous, concealed stainless steel hinge.
  • Finish: 304 stainless, #4 Satin finish.
  • Lock: Flush screwdriver-operated steel cam - C.
  • Sizes: Minimum 6” x 6”, maximum 48” x 48”

Optional Features at Additional Costs:

  • Non-Standard Frame and Door: 14 gauge door with 16 gauge frame, 16 gauge door with 14 gauge frame, 16 gauge door with 16 gauge frame, and 14 gauge door with 14 gauge frame
  • Plexiglass view window
  • Rain Hood
  • Gasketing
  • Removable Door (no hinges)
  • Stainless 316 Finish
  • Latch and Lock: Mortise Lock, Cylinder, Torx Head, Spanner Head, Hex Head, Knob Cam

Call Us Today!

Why Choose Access Doors and Panels? Because we are your reliable source of practical and handy access panels for your walls, ceilings, floors, and even your roofing system. We understand your access and security needs, so you can always talk to our expert product specialists and apply for credit! Call us at (800)-609-2917 and experience our excellent products and services!

Product Spec Sheet:
Door size:
22" x 36"
Rough Opening Size:
Door size + 1/2"
Material:
Stainless Steel
Frame:
18 gauge, stainless steel with 1" wall flange
Door:
16 gauge, stainless steel
Hinge:
Continuous, concealed stainless steel hinge.
Finish:
304 stainless, #4 Satin finish
Excellent Services
JL Industries 22" x 36" TMS - Multi-purpose Access Panel - Stainless Steel - For Walls & Ceilings - JL Industries
SKU # TMS-22-36
