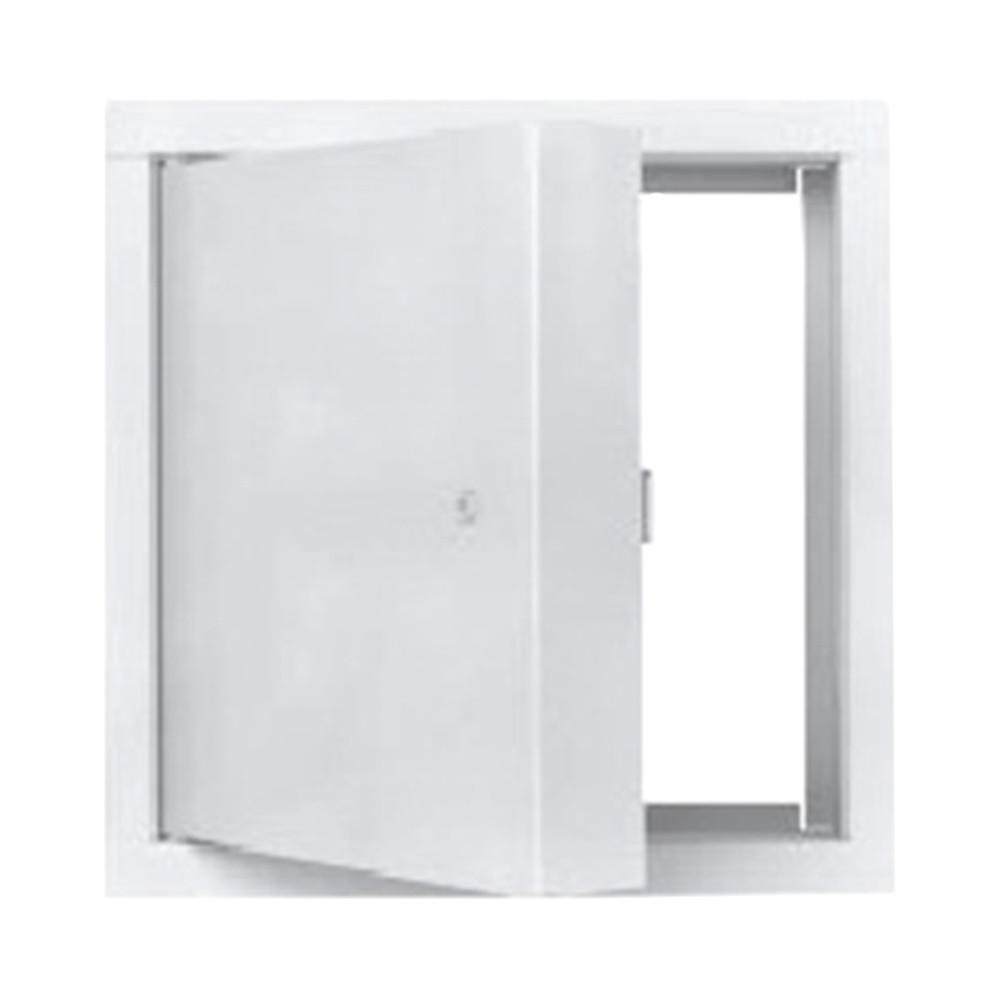

36" x 60" FD2 - 2 Hour Oversized Fire-Rated Access Panels for Wall - JL Industries
FD2 fire-rated access panels are among the largest-sized access panels available today. Along with its convenient size, which is ideal in circumstances where removal of equipment is needed, it also comes with a 2-hour fire rating. This 36" x 60" fire-rated access door is perfect for vertical and horizontal installations.
Benefits of Choosing FD2 Access Panel
Fire-Rated: This access panel has a 2-hour fire rating for vertical or horizontal installation. It will provide easy access while keeping your components and building occupants safe and secure. ( Non-Combustibility Classification: CAN/ULC S114, ASTM E136 CAN/ULC S102, ASTM E84, UL723.)
Oversized: One of the large access panels with a fire-rating available today, the FD2 is convenient and provides easy access. It is also ideal for installations in locations where removal or installation of equipment is needed, and you need a bigger opening to fit more than a human-sized object.
Durability: Despite being larger, it does not compromise or change the durability of the FD2 access panel. Its fire-rating quality comes from durable insulation materials giving it a more robust make than other access panels in the market.
Specifications:
- Frame: 16 or 14-gauge frame and door panel (depending on size). 7/8” or 1 1/4” trim
- (>36” x 36”)
- Door: 18 gauge face with a 22 gauge liner, 1 1/2” high-temperature insulation
- Finish: White prime-coated galvanized or 304 stainless steel with #4 finish.
- Lock: Automatic closer for the self-latching lock mechanism. 1/4” flush Allen key.
- Sizes: Wall - Maximum 60” W or 60” H. Ceiling - Maximum 36” x 36” or 30” x 48”. See
- the chart below.
We Offer Fire-Rated Products!
Whether for your ceilings or your walls, Access Doors and Panels has the fire-rated product for your needs. You can check out the various products we offer in our product catalog or call us at (800) 609-2917 to speak to our product expert directly. You can also get a quote for your future orders today.
Product Spec Sheet: |
|
Door Size: |
36" x 60"
|
Material: |
Galvannealed Steel
|
Cross Reference: |
