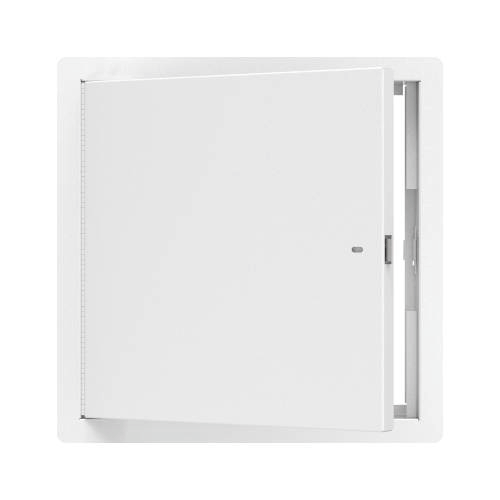

30" x 30" - Draft Stop Access Door

Hover over image to zoom

  • Image 1
Cendrex
RRP: $352.10
$277.24 (You save $74.86)
SKU:
DRD-30-30
Availability:
3 - 5 Days
Shipping:
Calculated at checkout

 Product Description

The DRD access door is not insulated. It comes with a 1” flange for an easy flush installation on any type of surface material. As per UL standards, once the installation is complete and the provided springs installed, this door will be self closing and self locking. It should not be used in situations where protection against temperature elevation is required. The largest DRD door available is: (24’’ x 60’’).

DRD Door specifications:

download-button.jpg  left-arrow.pngDownload Technical Data / Submittal Sheet

 LEED Certification:

usgbc.jpg  cbdca..jpg

This access door can contribute directly to a project's ability to achieve LEED certification:

USA

  • LEED-NC New Construction & Major Renovations
  • LEED for Schools
  • LEED-CI Commercial Interiors

CANADA

  • LEED Canada-NC New Construction & Major Renovations
  • LEED Canada-CI Commercial Interiors

 Other Details

Door Size: 30 x 30
Material: 16 gauge cold rolled steel frame and 20 gauge galvanneal steel door
Hinge: Continuous piano hinge
Lock / latch: Self latching tool-key operated slam latch and/or ring operated slam latch, both included
Inside panel release: Included on all slam latch doors
Automatic panel closer: Standard on all doors
Finish: DuPont high quality white powder coat
