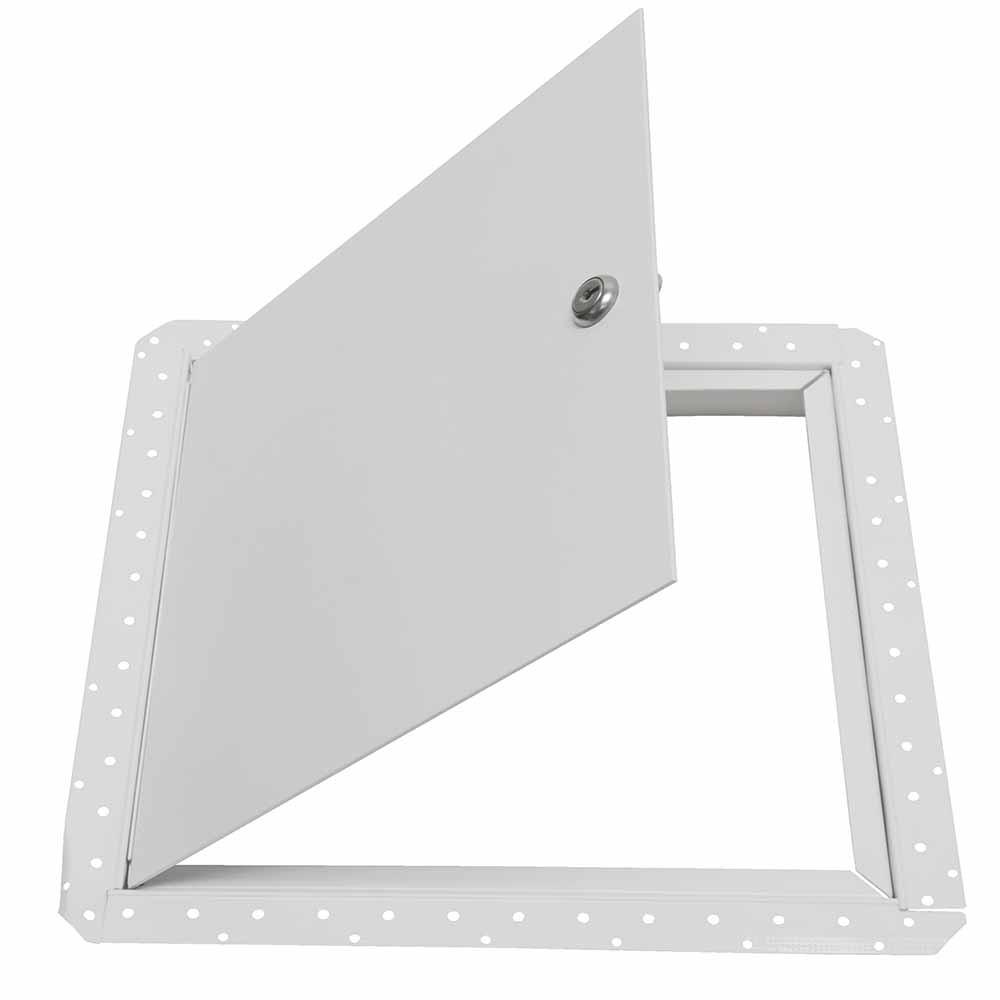

18" x 18" - Standard Flush Door for Wall or Ceiling Installation - Milcor

18" x 18" DW-M - Standard Flush Door for Wall or Ceiling Installation – Milcor

Finding the right access panel for walls or ceilings that don't stick out can be tricky, especially when you need something that blends in while remaining functional. Traditional access doors can be bulky and ruin a space's clean, modern look.

The DW-M 18" x 18" Standard Flush Door is the perfect solution. Its flush design fits neatly into your drywall, blending in smoothly and offering access when you need it without standing out.

Plus, the door opens fully to 175°, giving you complete access while keeping the space professional and tidy.

Why Choose the 18" x 18" DW-M?

• Sleek and Seamless Design: The flush panel blends smoothly into walls or ceilings, maintaining a clean, unobtrusive look.
• Easy Installation: The frame is designed to fit standard stud spacing, reducing the need for extra bracing or adjustments.
• Wide Access: Double-acting concealed spring hinges allow the door to open to 175° for easy, full access.
• Durable Materials: Made from high-quality cold rolled steel, ensuring long-lasting performance and sturdiness.
• Versatile Finishes: Available in white, stainless steel, galvanized steel, and optional colors, offering flexibility for various design preferences.

Need the best access doors and panels for ceiling installations? Check out our guide to discover the ideal solutions for your project, along with helpful tips and recommendations!

Product Specifications

• Dimensions: 18" x 18"
• Material: 16 gauge cold rolled steel
• Frame: 16 gauge cold rolled steel with galvanized steel drywall bead
• Hinge: Concealed spring hinges, allowing up to 175° opening
• Latch: Screwdriver-operated cam latch (custom options available)
• Finish: Powder coat – White (Optional finishes: Gray, Gold Sand, Jet Black, Stainless Steel, Galvanized Steel)
• Mounting: Pre-formed mounting holes (3/16" diameter at 4" spacing)
• Frame Configuration: Designed for standard stud spacing (12", 16", or 24" on center)
• Optional Features: Cylinder lock (with two keys), custom finishes available upon request

Installation Instructions

1. Prepare the Opening: Cut an opening in the wall or ceiling that's 1/2" larger than the door's size. Add appropriate framing according to local building codes.
2. Insert and Align the Door: Place the access door into the opening. Check alignment to ensure it's plumb, level, and square before securing the frame.
3. Secure the Door: Fasten the door through the frame's pre-formed holes starting from the hinge side, then secure the other three sides.
4. Apply Finishing Touches: Apply drywall tape and mud to the perimeter of the frame. Once dry, the door is ready for use.

Say goodbye to unsightly access panels—upgrade to the DW-M 18" x 18" Standard Flush Door for a sleek, seamless look and easy access! Additionally, simplify your space with a wall access door that combines practicality and a clean, modern design.

Discover the perfect Access Doors and Panels for your needs today! Enjoy fast shipping and explore our best sellers for top-rated products. Don't forget to visit our blog for expert tips and installation guides!
