16" x 16" Drywall Inlay Access Panel for Exterior Facade

MPL - Access panel for stucco

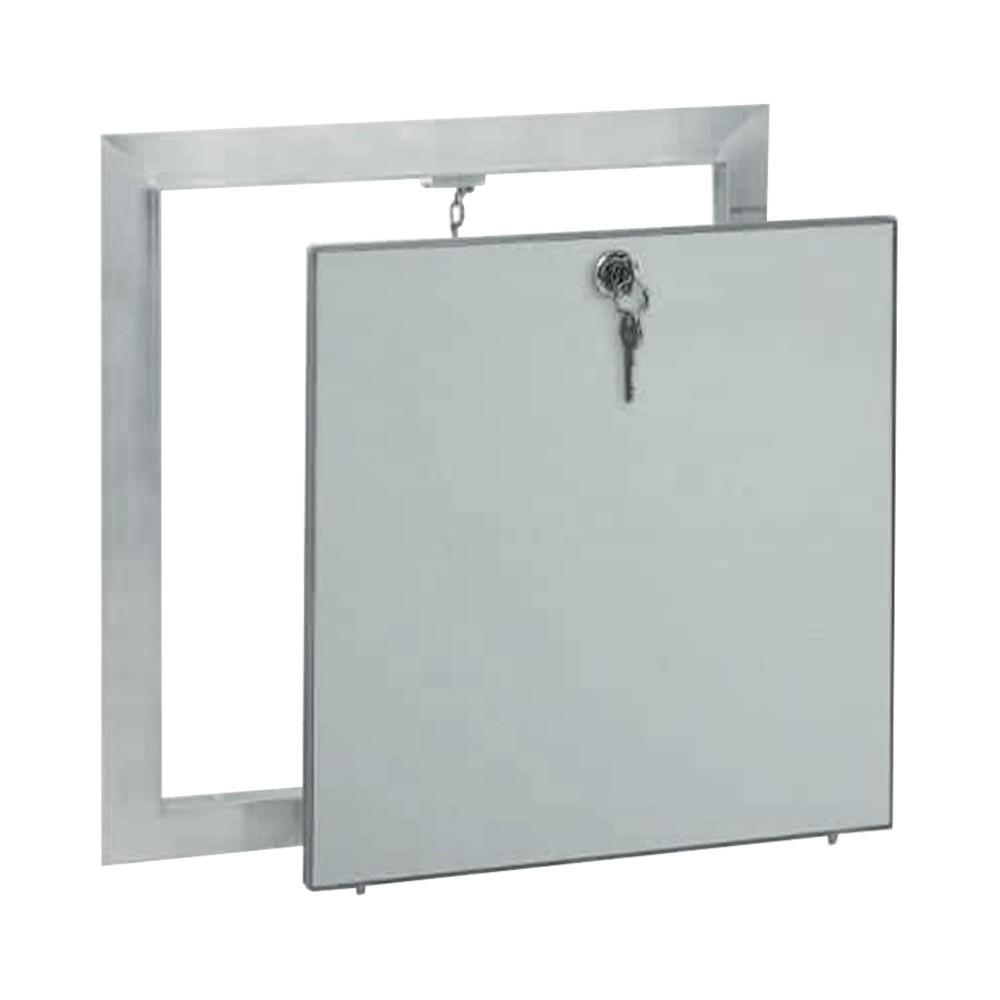

The access panel consists of aluminum profiles, a sheet steel insert with expanded metal and a round cylinder lock with key. Both, an outer and an inner frame of the access panel consist of four single frames, which are firmly connected due to a special welding process.

The access panel is equipped with a safety-system against accidental opening. In order to avoid accidents, this safety-system has to be secured after each opening. A joint gap of 3 mm is visible between outer frame and door leaf, which is equipped with an innovative brush joint (air-tight and dust-proof) and, in addition, with a special joint (water resistant). Access panels for facades in the outer area are applicable for direct mounting onto solid walls (without external wall insulation system) or for installation into a wall insultion system (foam-sealed) from an insulation thickness of 80 mm

Special advantages

  • Economical solution
  • Delivery at short notice on request
  • Easy and quick installation
  • Solid aluminum frame
  • Sophisticated solution
  • Flush installation in facades

Customized solutions

Customized sizes can be produced in every dimension upon request. (Request a Quote)

Product Spec Sheet:
Door Size:
16" wide x 16" high
Rough Opening Size:
16 3/8" x 16 3/8"
16 gauge galvanized steel
Galvanized Steel
1 flange"
Continuous piano hinge
Lock / latch:
3 x Screwdriver Operated Cam Latches
Excellent Services


FF Systems 16 x 16 Drywall Inlay Access Panel for Exterior Facade
SKU # MPL-16-16

16" x 16" Drywall Inlay Panel for Exterior Facade - FF Systems

(You save $43.02 )
