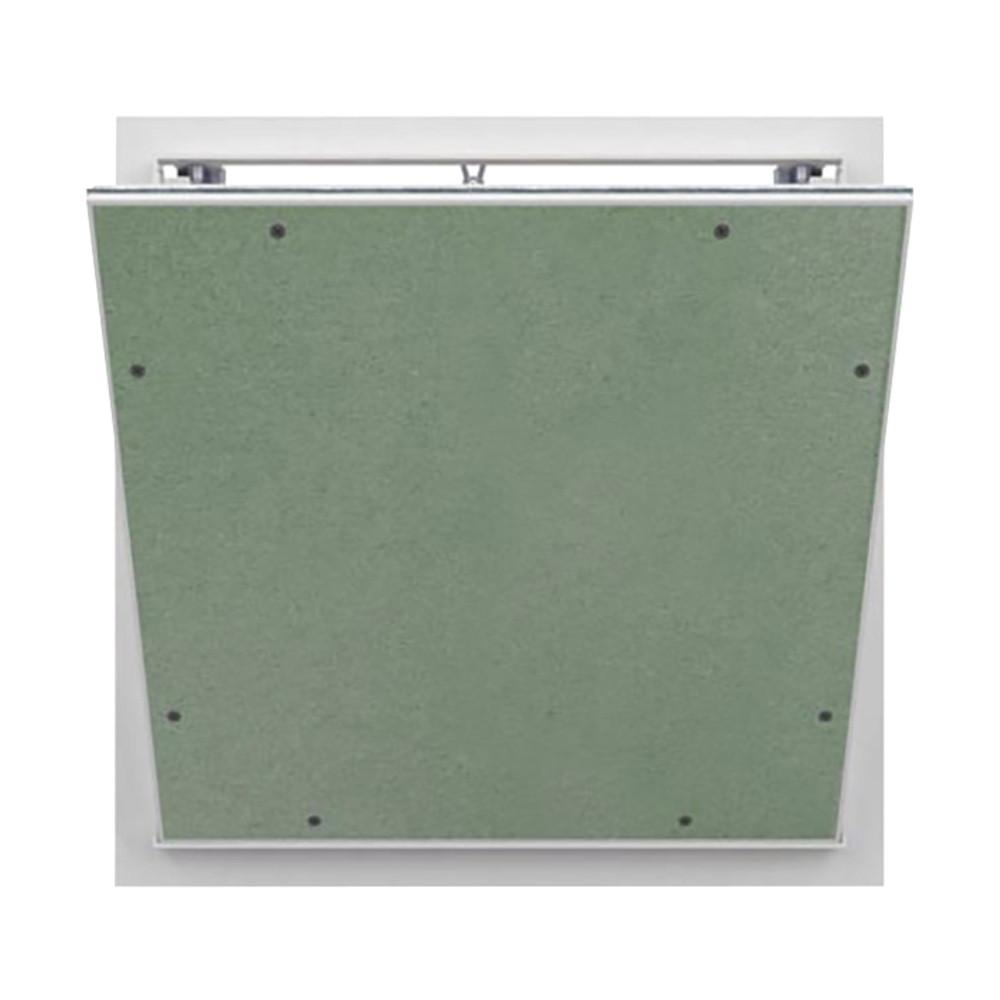

12” x 12” Recessed Panel with "Behind Drywall" Flange - 5/8" Inlay - Acudor

Finding a suitable recessed access door and panel for drywall and ceiling installations that fit your building's requirements is challenging. Even more challenging is determining the one that can blend well with your aesthetics. But, with the 12 X 12 DW-5058, most of your challenges will be easy to conquer.

Benefits of Installing 12 X 12 DW-5058:

  • Provides a convenient way to access components in ceiling and wall
  • Constructed from durable and robust materials
  • Aesthetically pleasing

The material used for the DW-5058 is aluminum, which makes it lightweight and robust. The aluminum extrusion comes fitted with drywall in the door panel, while the frame has a recessed 6063-T6 extrusion that offers a similar edge to the drywall bead. It allows ceiling or wall surface finishing.

The wing hinge enables the door panel to open up to 90 degrees. It also allows you to remove the door panel from the frame. The door and frame come with safety chains installed as protection.

The DW-5058 also has a dust seal gasket and a standard concealed touch latch. Optional latches and locks are also available such as cylinder lock & key, Allen head cam latch, Slotted Screwdriver Cam Latch, and spanner head cam latch. Lastly, it has a powder finish painted white.

12 X 12 DW-5058 Product Specifications:

  • Material: Aluminum extrusion with drywall fitted in the door panel
  • Door Frame: Aluminum extrusion 6063-T6 recessed to provide a similar edge to drywall bead, allowing for wall or ceiling surface finishing.
  • Hinge: The wing hinge allows the door panel to open to 90 degrees and can allow you to remove the door panel from the frame. Safety chain installed on door & frame for safety.
  • Gasket: Dust seal gasket
  • Standard Latch: Concealed Touch Latches
  • Optional Locks/Latches: Slotted Screwdriver Cam Latch, Allen head cam latch, spanner head cam latch, cylinder lock & key.
  • Finish: Powder Painted White

You can check for other panel types that may suit your building requirements by going to the category tab on Access Doors and Panels' home page. We offer a wide selection of access doors and panels for your projects. If you need something unique, click the custom tab and send us your details or call (800) 609-2917.

Product Spec Sheet:
Door Size:
12" wide x 12" high
Rough Opening Size:
12 1/2" wide x 12 1/2" high
Concealed Touch Latches
Flange is recessed to provide similar edge to drywall bead to allow for finishing of wall or ceiling surface
Spring loaded hinge pin allows door panel to open to 90 degrees, and also allows for door panel to be removed from frame. Safety chain installed on door & frame for safety
Mill Finish
