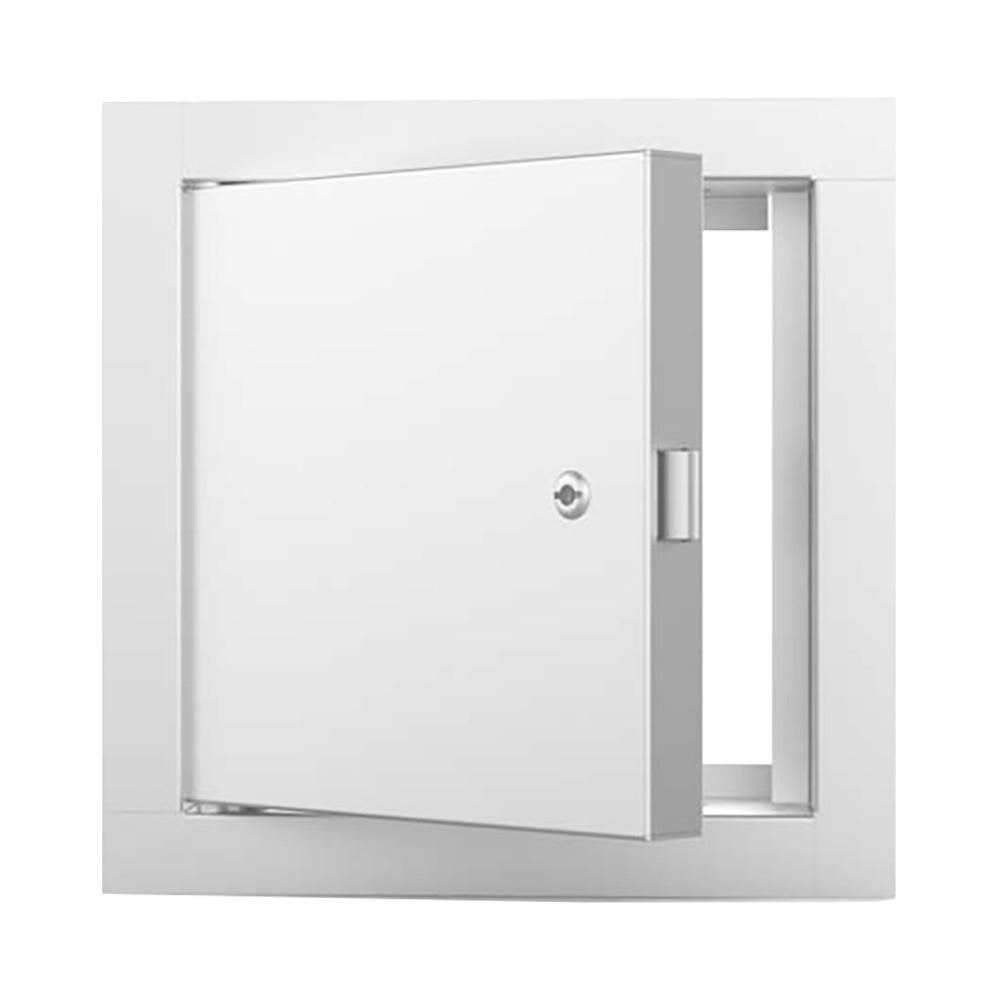

10" x 10" Fire Rated Un-Insulated Access Door with Flange - Acudor

Hover over image to zoom

  • Image 1
Acudor
RRP: $115.20
$95.35 (You save $19.85)
SKU:
FB-5060-10-10
Availability:
In Stock
Shipping:
Calculated at checkout

 Product Description

10" x 10" Fire Rated Un-Insulated Access Door with Flange - Acudor

Approved by Underwriters Laboratories (UL) for 1 1/2 hours "B" label in walls and ULC for 2 hours "B" label in walls. Designed to maintain continuity in a 2-hour fire barrier wall, the FB-5060 should be used whenever it is necessary to provide access in fire rated walls, when temperature rise is not a factor.



360spin: FB-5060
Door Size: 10" wide x 10" high
Rough Opening Size: 10 ⅜" wide x 10 ⅜" high
Material: 16 gauge steel
Lock/Latch: 1 x Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
Flange: 1" flange
Hinge: Concealed
Finish: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
Product Spec PDF: Product
Fire Rating: 2 hour



360spin: FB-5060
Door Size: 10" wide x 10" high
Rough Opening Size: 10 ⅜" wide x 10 ⅜" high
Material: 16 gauge steel
Lock/Latch: 1 x Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
Flange: 1" flange
Hinge: Concealed
Finish: 5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
Product Spec PDF: Product
Fire Rating: 2 hour
