30" x 36" Heavy Duty Double Leaf Access Door for Large Openings with Exposed Flange - Cendrex

Need another size? Click here
$442.00
(— You save $88.40 )
SKU:
LHD-180-30-36
Availability:
10 days
  • 30" x 36" Heavy Duty Double Leaf Access Door for Large Openings with Exposed Flange - Cendrex
  • 30" x 36" Heavy Duty Double Leaf Access Door for Large Openings with Exposed Flange - Cendrex
  • 30" x 36" Heavy Duty Double Leaf Access Door for Large Openings with Exposed Flange - Cendrex
Downloads

Product Details

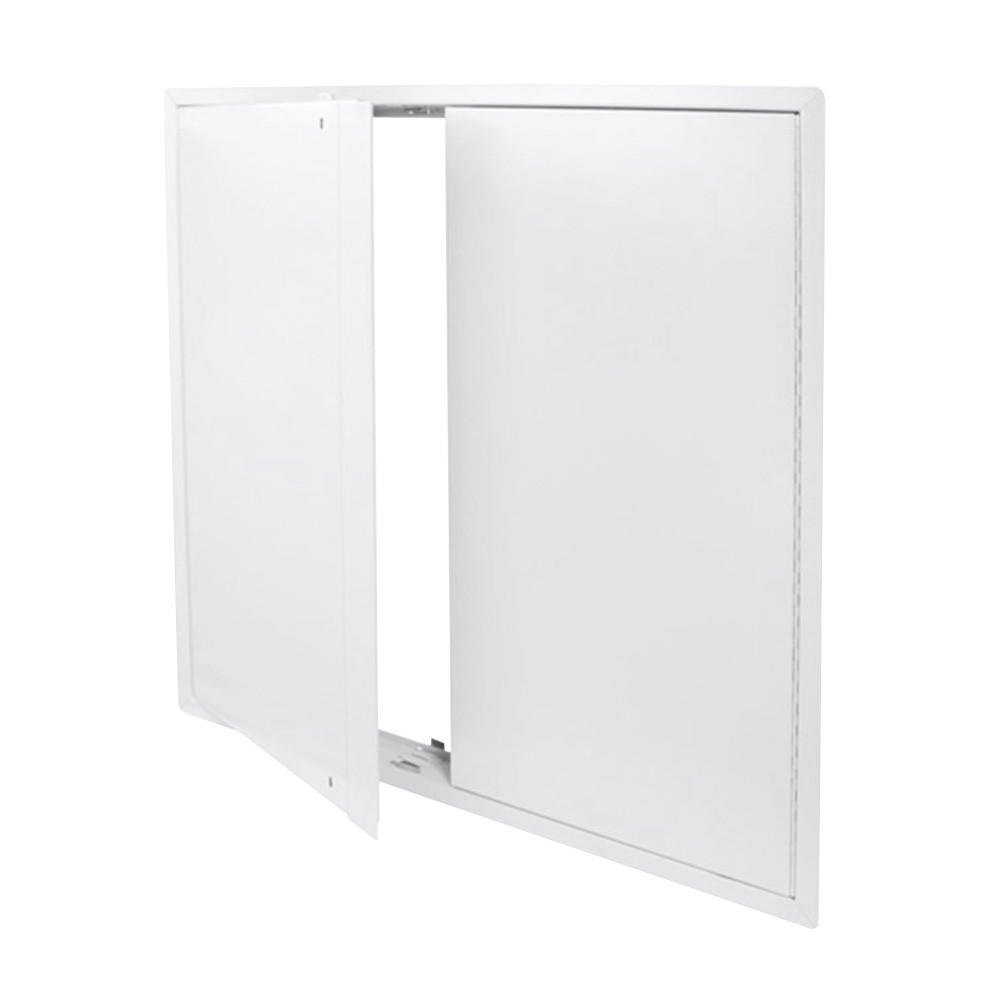

30" x 36" Heavy Duty Double Leaf Access Door for Large Openings with Exposed Flange

Designed with a screwdriver operated cam latch and double doors, this model is ideal for larger openings. Includes an inside panel release. Pre-installed screwdriver operated cylinder cam latch.

  • Installation: Walls and ceilings
  • Material: Cold rolled steel
  • Locking mechanism: Screwdriver operated cylinder cam latch
  • Hinge: Piano hinge
  • Flange: Exposed flange
  • Size: Other sizes available upon request

Product Submittal/Spec sheet:

Door Size:
30" wide x 36" high
Rough Opening:
30 1/4" wide x 36 1/4" high
Material:
16 gauge cold rolled steel
Hinge:
Continuous piano hinge. Hinge location: Hinges must be located on the second dimension (height).
Lock / latch:
Screwdriver operated cylinder cam latch. Available for insulated aluminum access doors and large opening access doors.
Finish:
High quality white powder coat primer
