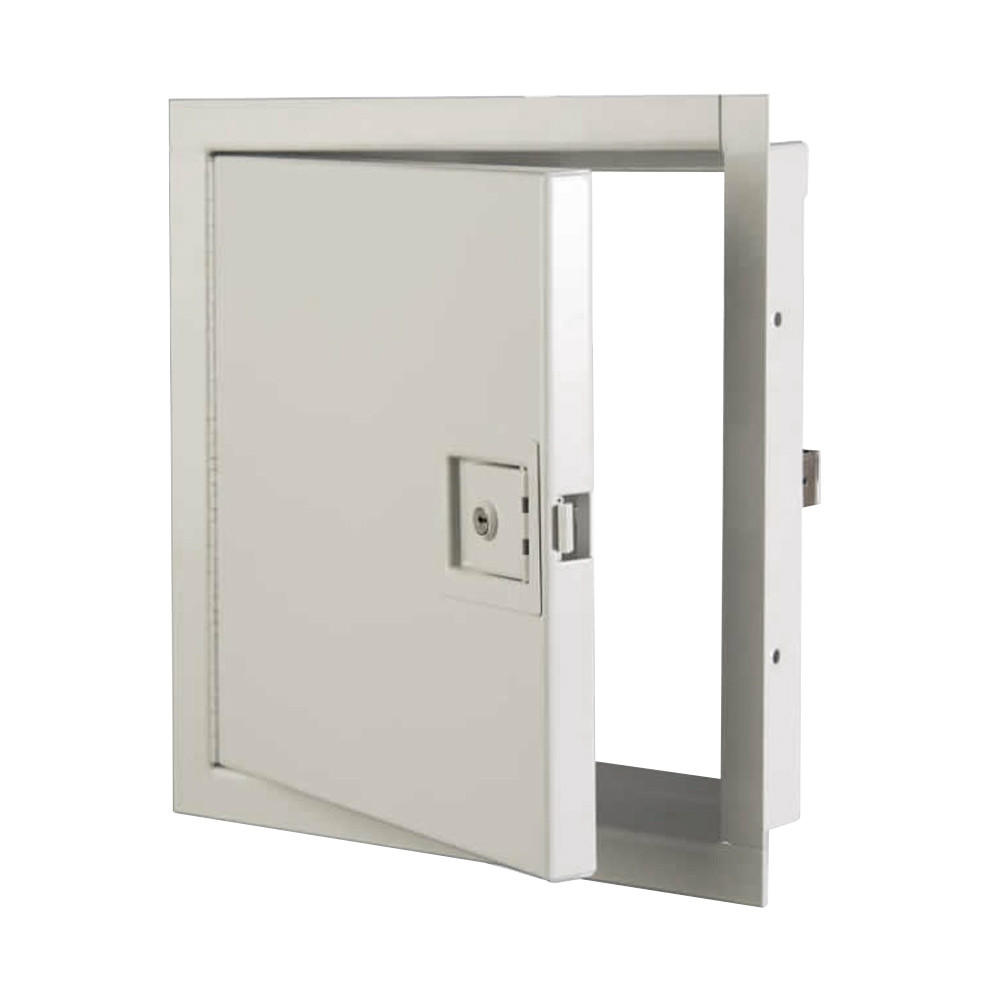

24" x 24" Fire Rated Access Door for Walls - Stainless Steel - Karp

The KRP-250FR with stainless steel finish is flush mounted, with both anchor straps and mounting holes to facilitate installation. The KRP-250FR is non-insulated for wall installation only and rated by Underwriters Laboratories for 1.5 hour "B" label in walls. Listed below are standard sizes, other sizes are available.

  • For Walls Only
  • For all surfaces
  • Frame and Trim: 16 gauge steel with corners welded and ground smooth with anchor straps.
    Trim is 1" wide.
  • Door: 16 gauge steel and opens to 175°. The door is self-latching with automatic closer and interior latch release.
  • Hinge: Continuous piano hinge.
  • Finish: #4 Satin Stainless Steel
Door Size:
24" height by 24" wide
Rough Opening Size:
24⅜" height x 24⅜" wide
Material:
Stainless Steel #4 Satin Finish
Lock / latch:
Spring loaded sliding bolt type keyed paddle latch, all keyed alike
Flange:
1" flange
Hinge:
Exposed continuous piano hinge
Product Spec PDF:
