16" x 16" General Purpose Access Door with Drywall Flange - Cendrex

Need another size? Click here
$42.68
(— You save $35.29 )
SKU:
AHD-GYP-16-16
Availability:
In Stock
  • 16" x 16" General Purpose Access Door with Drywall Flange - Cendrex
Downloads

Product Details

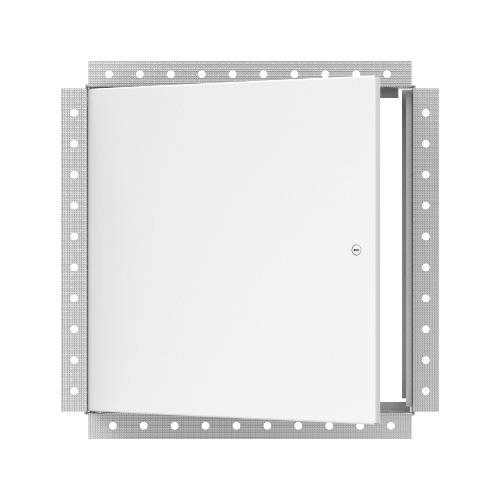

16" x 16" General Purpose Access Door with Drywall Flange

The AHD_GYP access door is engineered for a clean final finish. Once a sufficient layer of drywall compound is applied to the corner bead flange it will leave only the door panel visible. Just like the AHD, the concealed pin hinge and 1/4" return around the door make it the right choice for a great look and a long lasting usage.

Product Spec Sheet: Product Specifications



Door Size:
16" wide x 16" high
Rough Opening Size:
16 ⅜" wide x 16 ⅜" high
Material:
16 gauge steel door, 14 gauge mounting frame
Lock/Latch:
1 x Flush to surface, screwdriver operated cam latch
Flange:
Expansion casing bead with 3" wide galvanized lath, recessed 3/4" to receive plaster
Hinge:
Concealed pin hinge
Finish:
5 stage iron phosphate preparation with prime coat of White alkyd baked-on enamel
