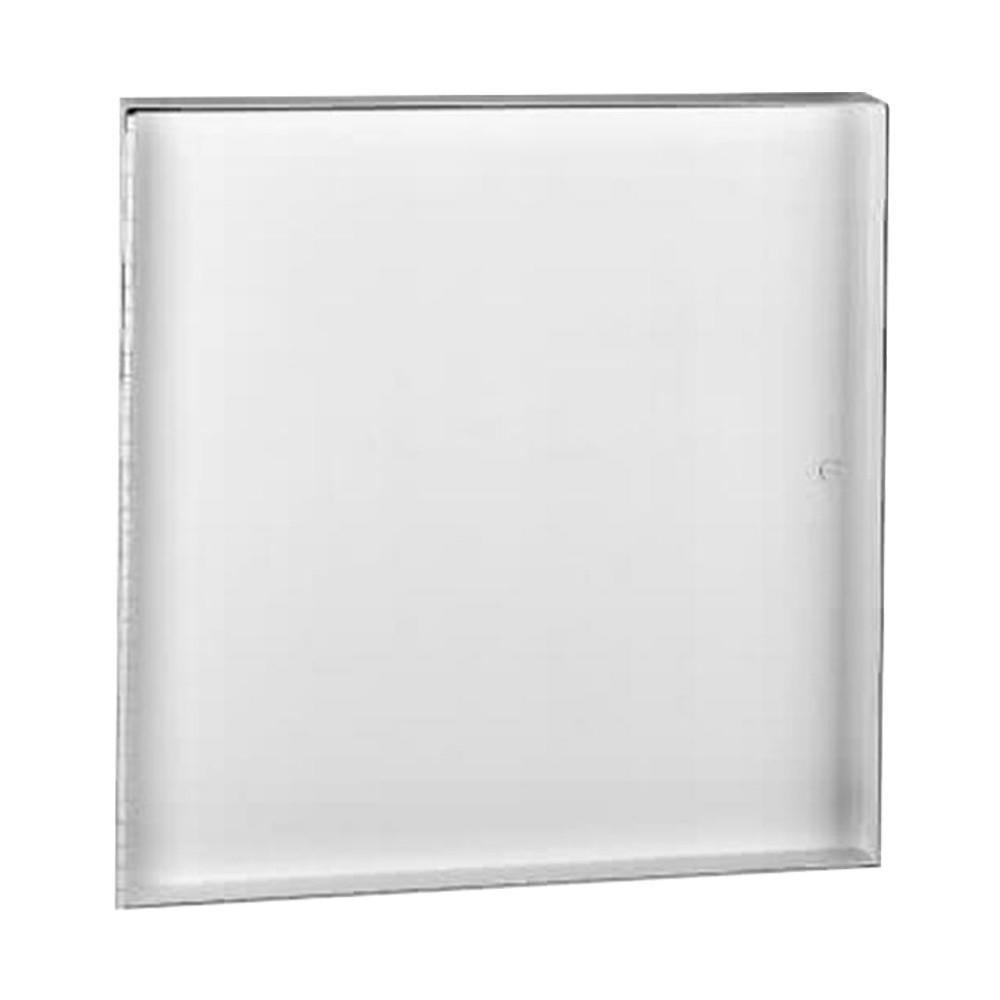

12" x 12" CT - Concealed Frame Access Panel with Recessed Door for Acoustical Tile or Wallboard Insert - JL Industries

The CT concealed frame access panel is one of today's recommended access panels for installations that need an acoustic tile or wallboard insert. It comes with a recessed door and is not for use when the suspended ceiling requires installing joists.



Why Install the CT- Concealed Frame Access Panel

Recessed Door: The CT access panel's recessed door ensures that it can accommodate ½" acoustic tile or wallboard insert. It leaves an aesthetically pleasing finish after installation on your walls or ceilings, as it can easily match it.

Accessibility: With its concealed frame, this access panel can access walls and ceilings to reach internal components hidden directly behind. It provides convenience for maintenance and cleaning experts that need to check on these internal components to ensure they are functional.

Easy Installation: Another reason you should choose the CT- concealed frame access panel with a recessed door is its easy installation. You won't have to remove the acoustic tile or wallboard surrounding the opening for this access door to fit properly.



Specifications

  • Frame: 14-gauge steel.
  • Door: 16-gauge steel, recessed for tile or drywall inserts up to 1/2" thickness, with continuous hinge.
  • Finish: White powder-coat finish.
  • Lock: Flush screwdriver-operated cam (C).
  • Sizes: Minimum 6" x 6" (152 x 152 mm), maximum 36" x 36" (914 x 914 mm).



We've Got You Covered!

When it comes to access doors for accessibility with aesthetic purposes, know that you can count on Access Doors and Panels! If you want more information on our products and how each would benefit you, do not hesitate to contact us at (800) 609-2917! For bulk or future orders, you can request a quote from us today!

Product Spec Sheet:
Door Size:
12" wide by 12" tall
Rough Opening Size:
12 1/4" wide by 12 1/4" tall
Material:
Steel
Lock / latch:
Screwdriver Operated Cam Latch"""
Flange:
None
Hinge:
Continuous hinge
Finish:
White primer coat
Excellent Services
JL Industries 12 x 12 CT - Concealed Frame Access Panel with Recessed Door for Acoustical Tile or Wallboard Insert - JL Industries
SKU # CT-12-12

12" x 12" CT - Concealed Frame Access Panel with Recessed Door for Acoustical Tile or Wallboard Insert - JL Industries

$116.21
$83.01
(You save $33.20 )
